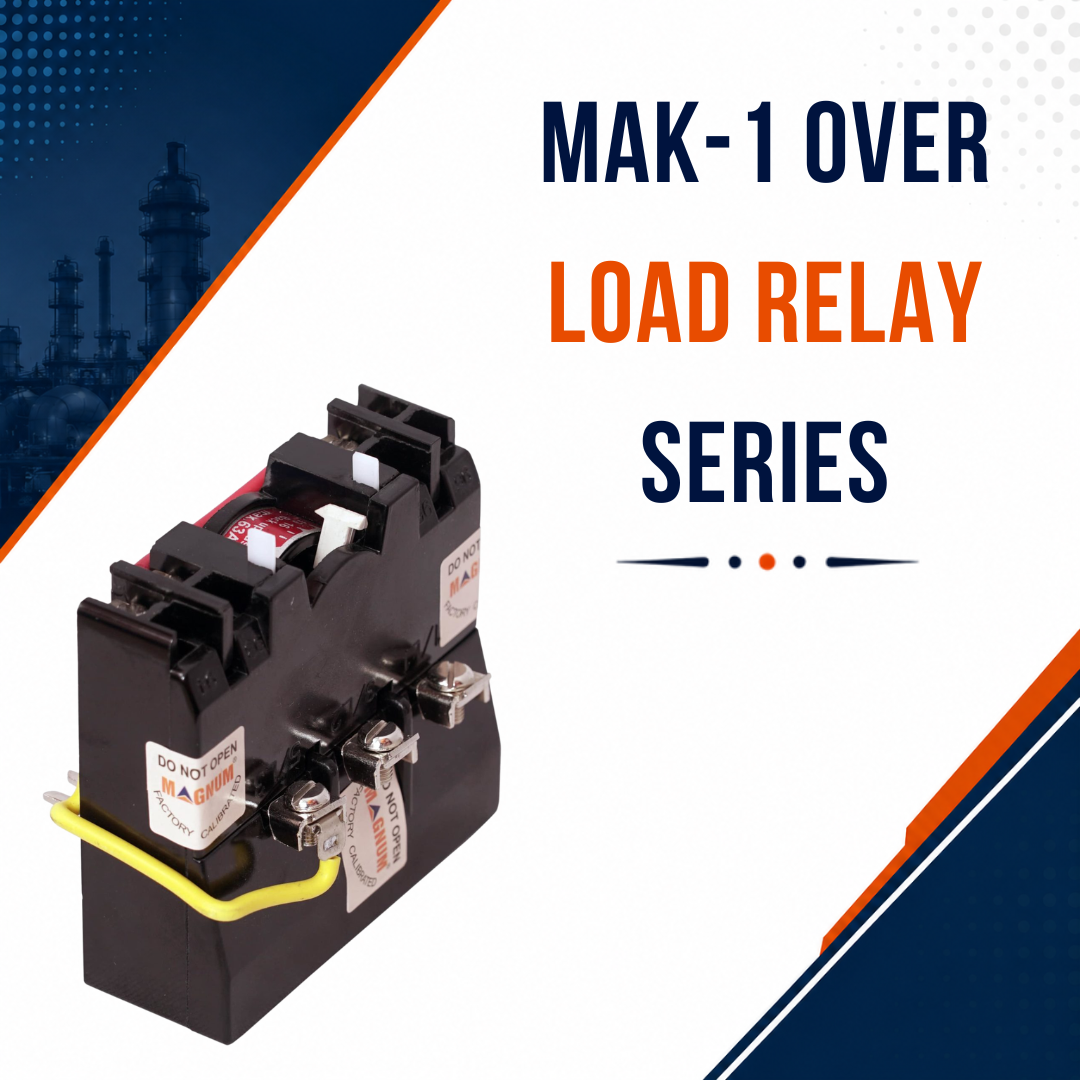

Magnum MaK-1 Over Load Relay is an electrically operated switch which is used for switching purpose and protects the motor from over current. Housed in a Bakelite enclosure MAK-1 Over Load Relays by
View Details →

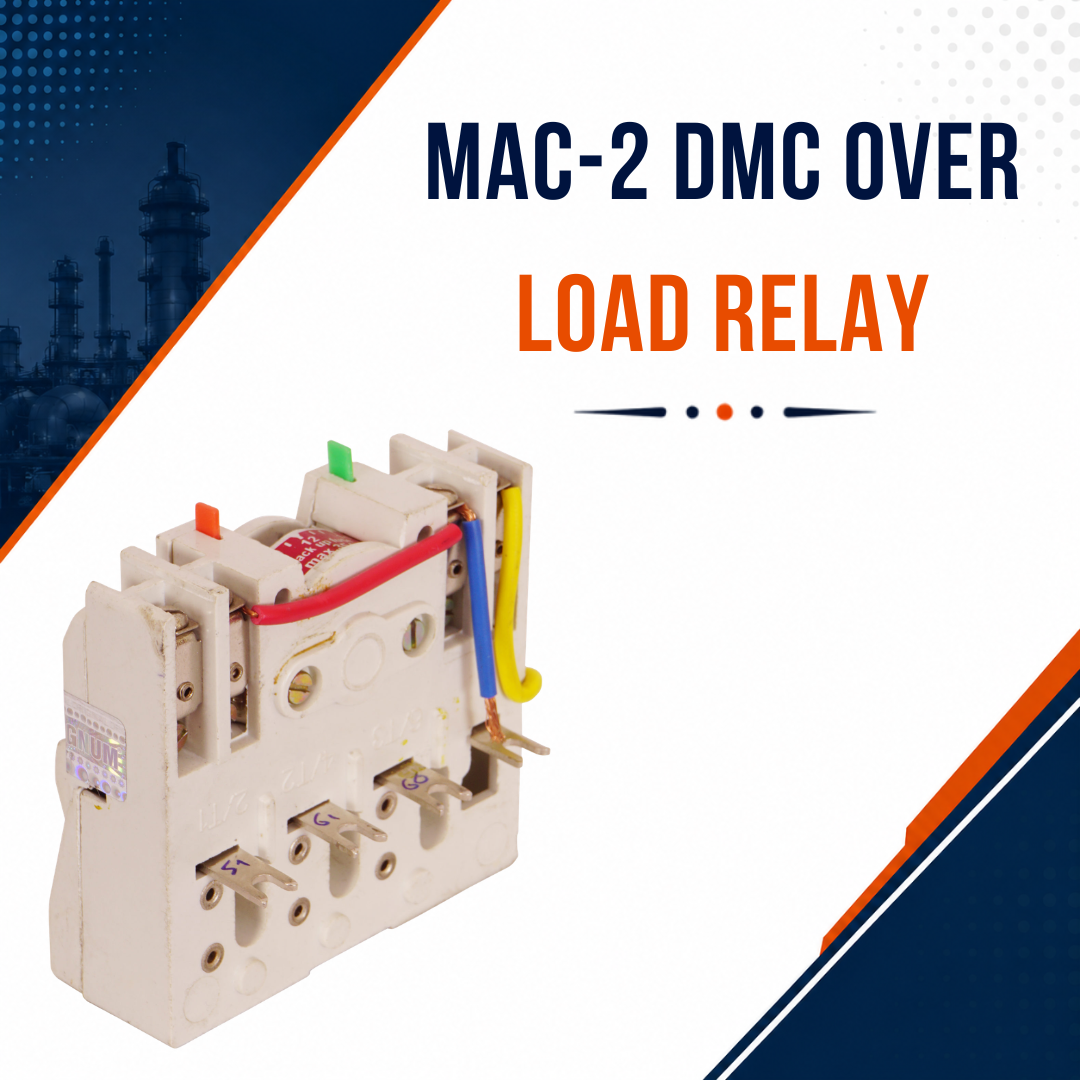

Magnum MaC-2 Over Load Relay protects the motor from high current related hazards. The relay will operate generally to close or open electrical contacts to initiate some further operation.
View Details →

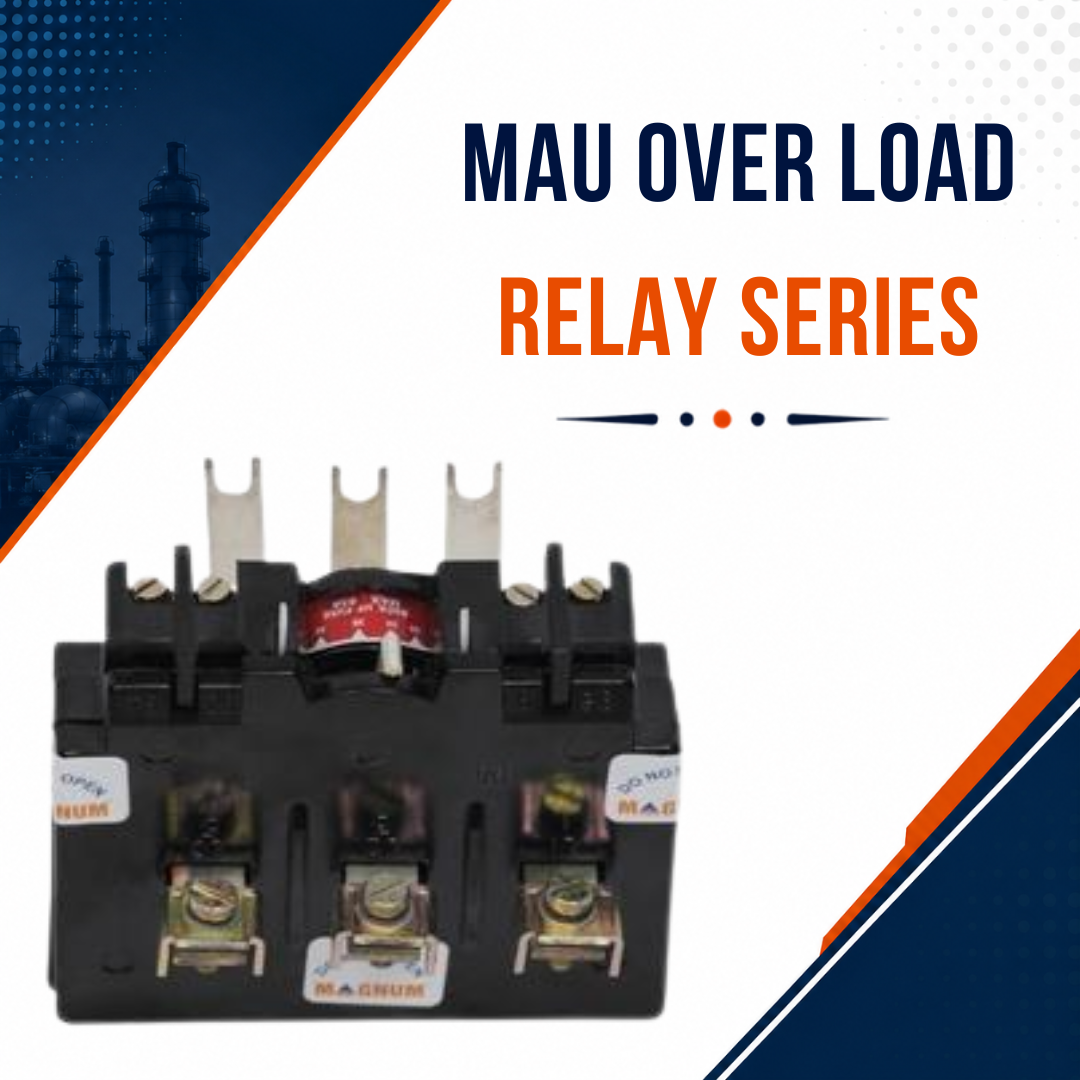

Magnum MaU Over Load Relay is used for switching purpose and protects the motor from over current. MaU Relays – Large sized and heavy duty overload relays. Best suitable for higher rating applications.
View Details →

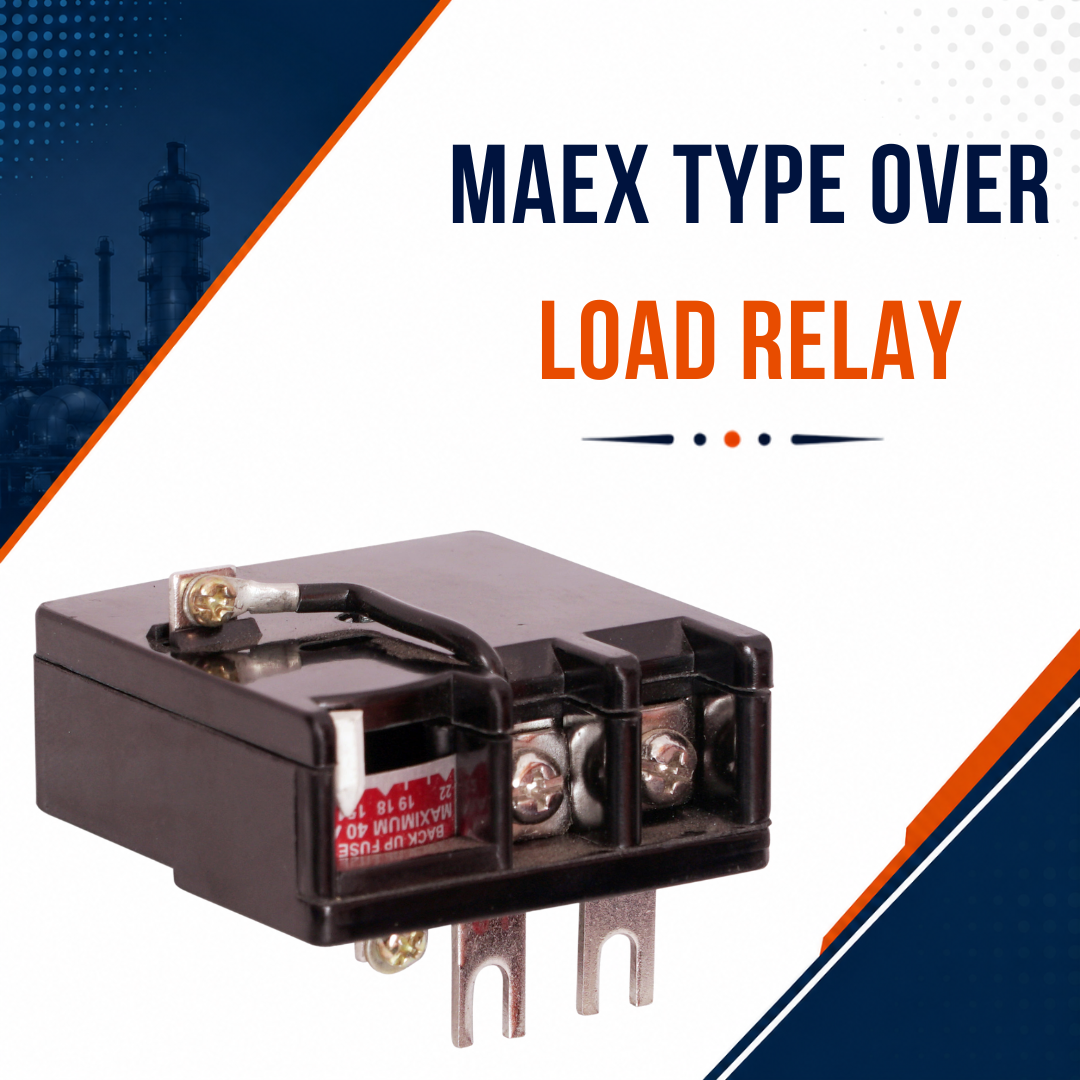

Magnum MaEX over load relays are available for single phase applications. They are trip tested to ensure accuracy while tripping.
View Details →Full specification matrix across Electrical Specifications, Mechanical Details, Protection Features and General Ratings.
↔ Scroll horizontally to compare all models| Overload Relays | MaK-1 2P/4P | MaC-2 4 Pole | MaU - 3Pole | MaEX - 2Pole (Auto Reset) |
|---|---|---|---|---|
| RSK/RTK | RTDC | RTU | RSX | |
| Product Type | Thermal Overload Relay | Thermal Overload Relay | Thermal Overload Relay | Thermal Overload Relay |
| Reset Type | Manual | Manual | Manual | Auto re-set |
| Mounting | Contactor Mounted | Contactor Mounted | Contactor Mounted | Contactor Mounted |
| Electrical Specifications | ||||
| Current Setting Range | ||||
| Rated Operational Voltage (Ue) | Up to 690V AC | Up to 690V AC | Up to 690V AC | Up to 690V AC |
| Rated Insulation Voltage (Ui) | 690V | 690V | 690V | 690V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Auxiliary Contacts | 1NO + 1NC | 1NO + 1NC | 1NO + 1NC | 1NO + 1NC |
| Mechanical Details | ||||
| Dimensions (L × W × H) | 85*55*85 | 86*55*85 | 105*90*95 | 60*55*65 |
| Housing material | Bakelite | DMC | Bakelite | Bakelite |
| Colour | Black | White | Black | Black |
| Terminal Type | Screw Clamp | Screw Clamp | Screw Clamp | Screw Clamp |
| Mounting Type | Direct | Direct | Direct | Direct |
| Protection Features | ||||
| Overload Protection | Yes | Yes | Yes | Yes |
| Ambient Temperature | -5°C to +55°C | -5°C to +55°C | -5°C to +55°C | -5°C to +55°C |
| Weight in KG | 0.190/0.160 | 0.240 | 0.340 | 0.110 |
