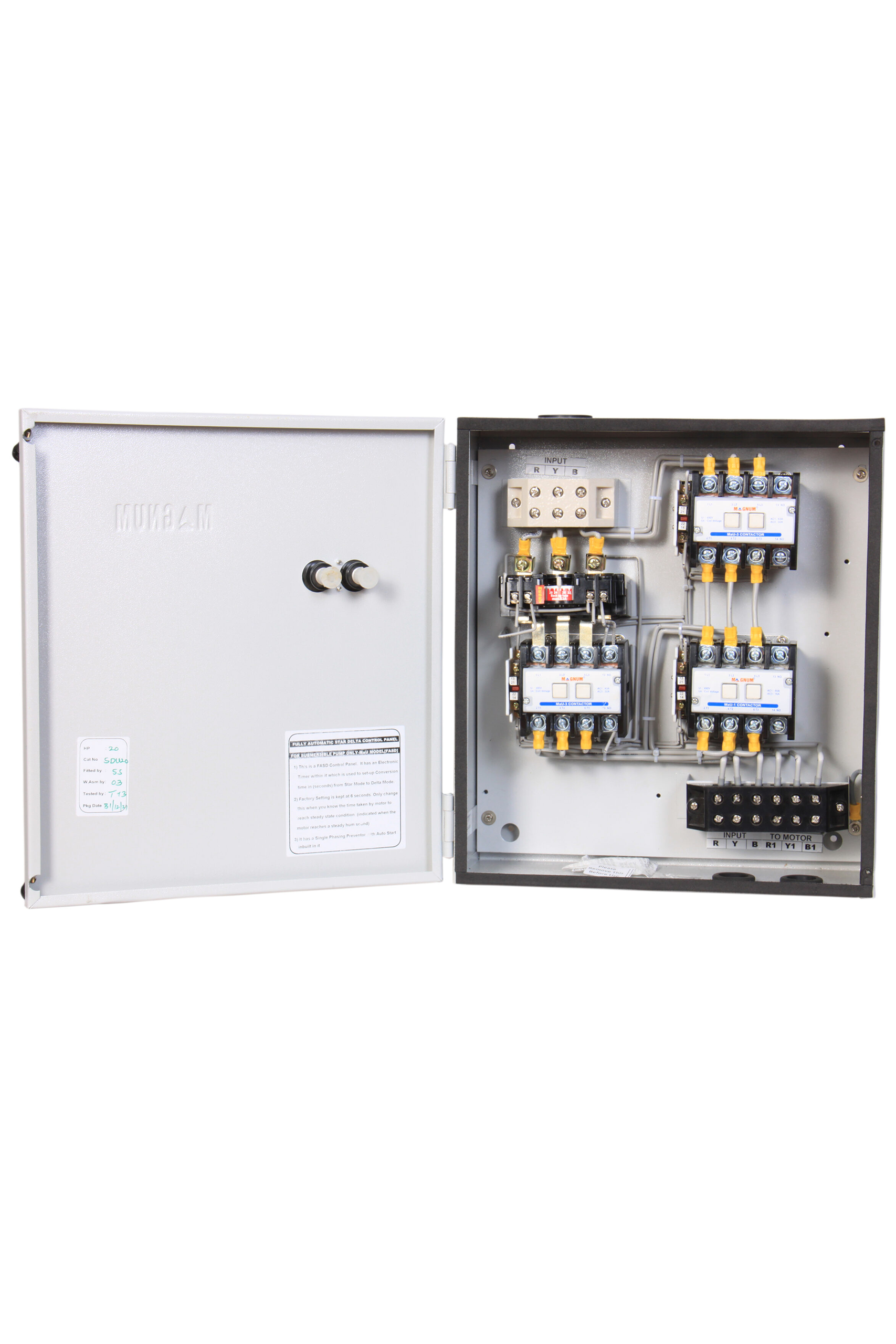

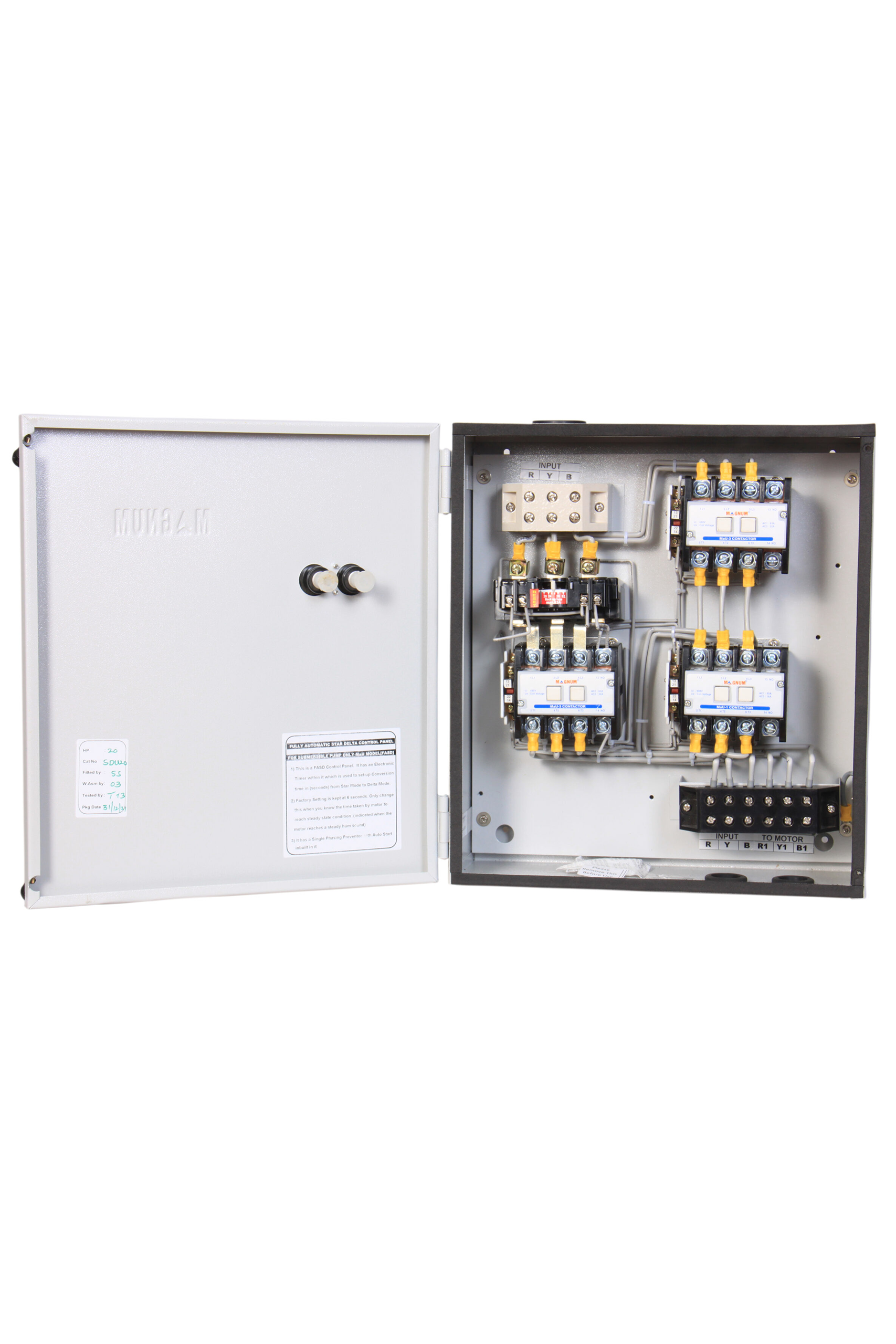

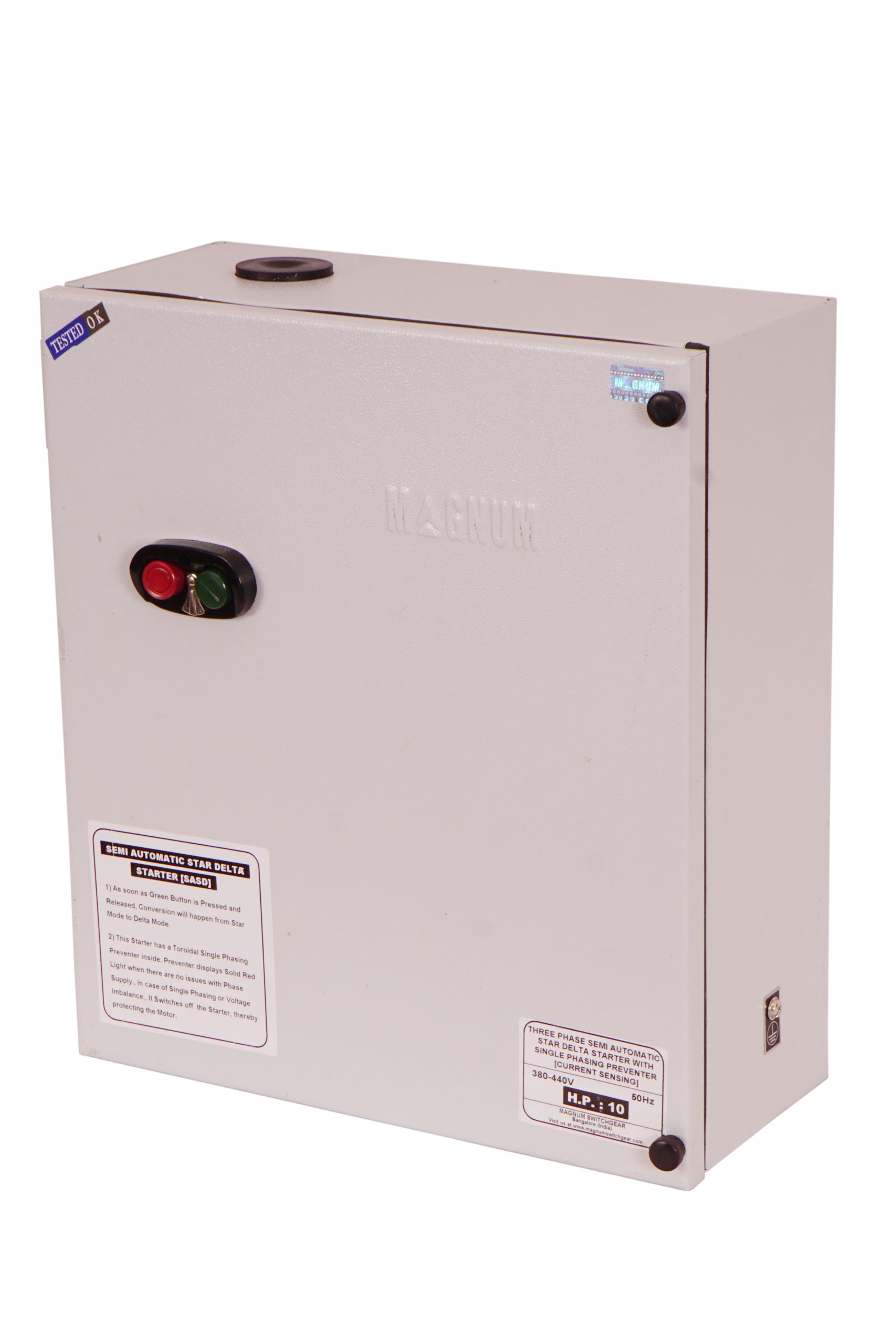

TrishaktiStar Delta Motor Starter MaU

Magnum Trishakti Semi-Automatic Star Delta Starters MaU are powerful controlling devices for your higher H.P Motors. This is made from quality raw materials, enabling it to protect and control your motor consistently.

Product Video

Magnum Trishakti Star Delta Motor Starter MaU series are invariably the most reliable and durable of SD starters.

Data Sheet Download

01Powder-coated MS enclosure for enhanced corrosion resistance and sturdiness.
02Rugged and heavy-duty MaU contactors designed to handle higher loads, with a wide voltage band of 200V to 440V.
03MaU type overload relay for reliable motor overload protection.
04Manual reset facility after overload protection is activated.
05Push-button locking provision to keep the Stop button locked, preventing accidental starting.
06Input and output connections terminated through a terminal block, eliminating the need for intervention in the internal circuit.
07All connections terminated using appropriate crimping lugs for secure and reliable electrical connections.
08Easy and quick mounting for convenient installation.
09Ergonomic and aesthetically pleasing design for a neat and professional appearance.
10Auxiliary contact provision supporting 1NO + 1NC configuration.
11No screw protrusion from the panel, providing additional protection against water, dust, corrosion, and accidental electric shock.
12Gasketed enclosure for protection against the ingress of dirt and water.

Power rangeUp to 20 HP

Coil Voltage440 V

Operating Voltage70% to 110% of coil voltage

Pick up voltageMinimum 60% of coil voltage

Drop off voltageBelow 50% of coil voltage

Contactor 4PMaU [16A / 25A / 32A]

Relay 4PMaU-1 / MaU-2

AreaMaU (370 × 330 × 143) mm

Net Weight8.6 – 8.7 Kilo grams

Frequency50Hz

Insulation Voltage Ac (Vi)660V

Ambient Temperature-25°C to +55°C

Terminal Capacity1 × 16 (mm)² or 2 × 10 (mm)²

Magnum Trishakti Semi-Automatic Star Delta Starters MaU are powerful controlling devices for higher H.P Motors.

Industries - heavy machinery Floor Mills, Compressors, Lathes etc.
