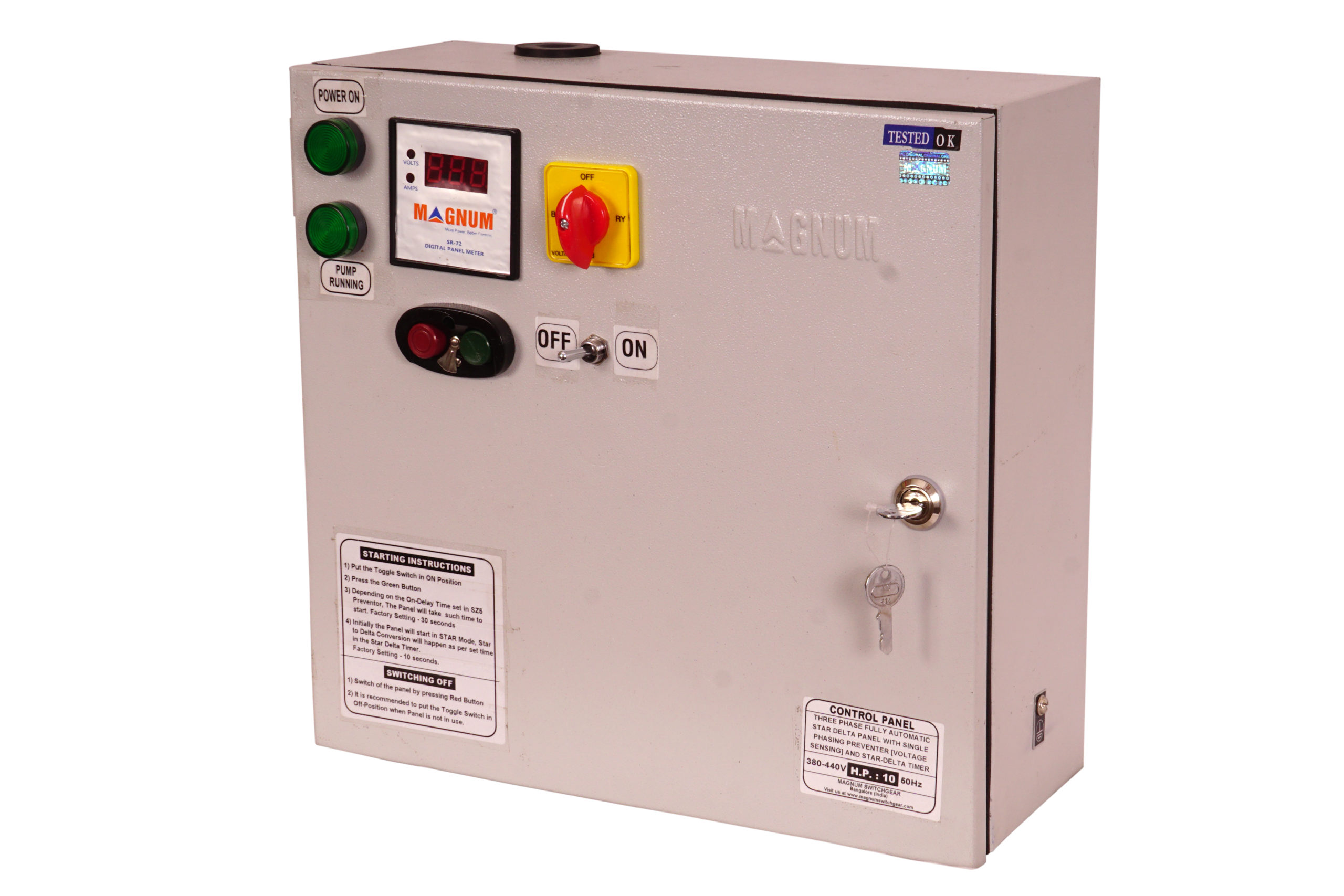

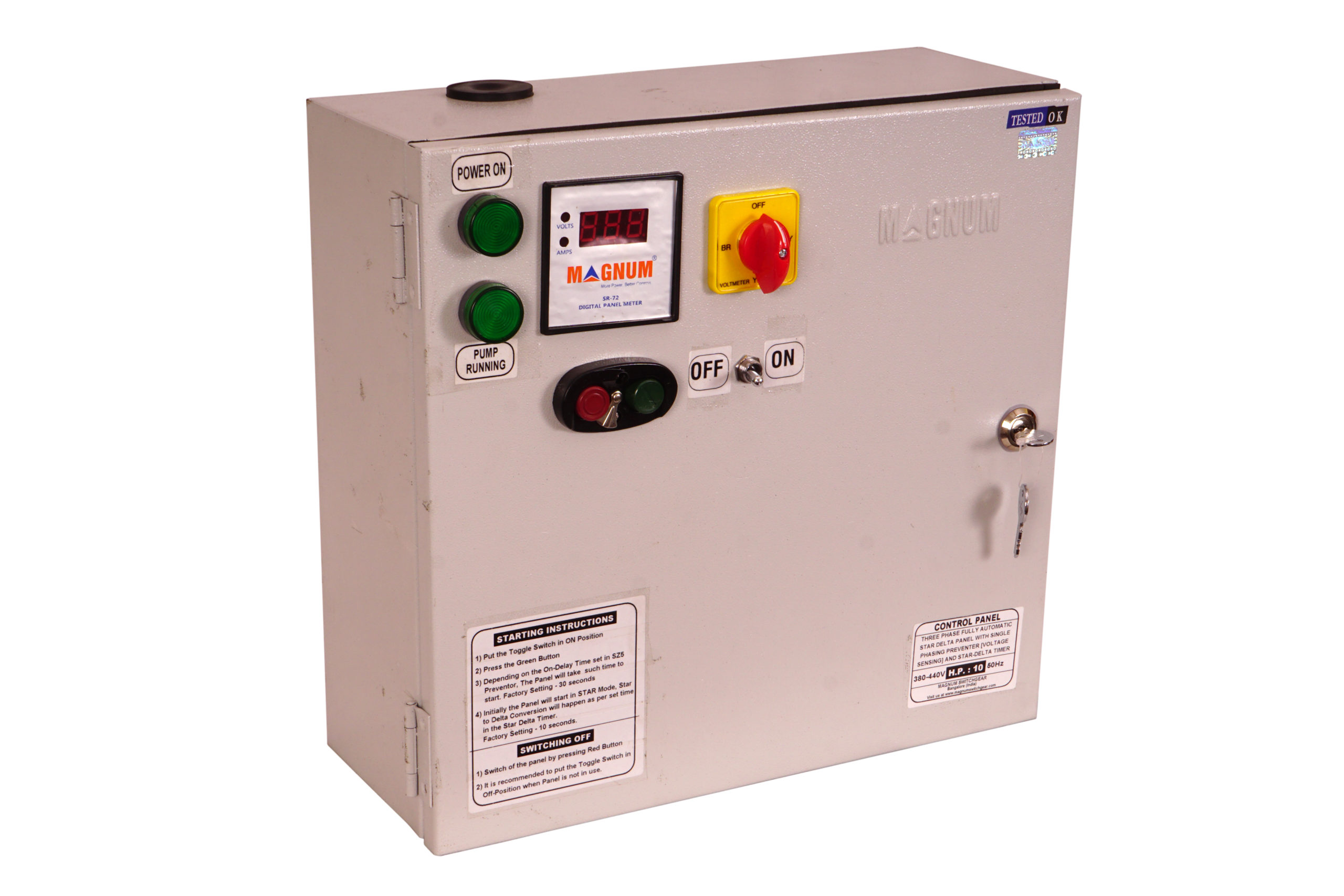

VajraStar Delta Control Panel MaU

MAGNUM Vajra Star Delta Control Panel MaU is a controlling device for higher H.P of motors. These are made from quality raw materials, enabling it to protect and control your motor consistently.

Functions

1. Switches your pump/motor on and off.

2. Being based on Star-Delta mechanism the starting torque & current is considerably reduced on the motor.

3. Protects the pump from: Over-Current, Single phasing condition, Phase Reversal, Phase Unbalanced Condition, Short Circuit.

4. Enables Motor to automatically Switch-On if power resumes when kept in Auto-mode.

5. Indication of power supply to the panel.

6. Indicates current drawn by the motor.

7. Indicates voltage supplied to the panel.

Product Video

Magnum Vajra Star Delta Control Panel MaU offered by Magnum Switchgear is premium and robust in construction and performance. For higher rated motors these panels are best suited.

Data Sheet Download

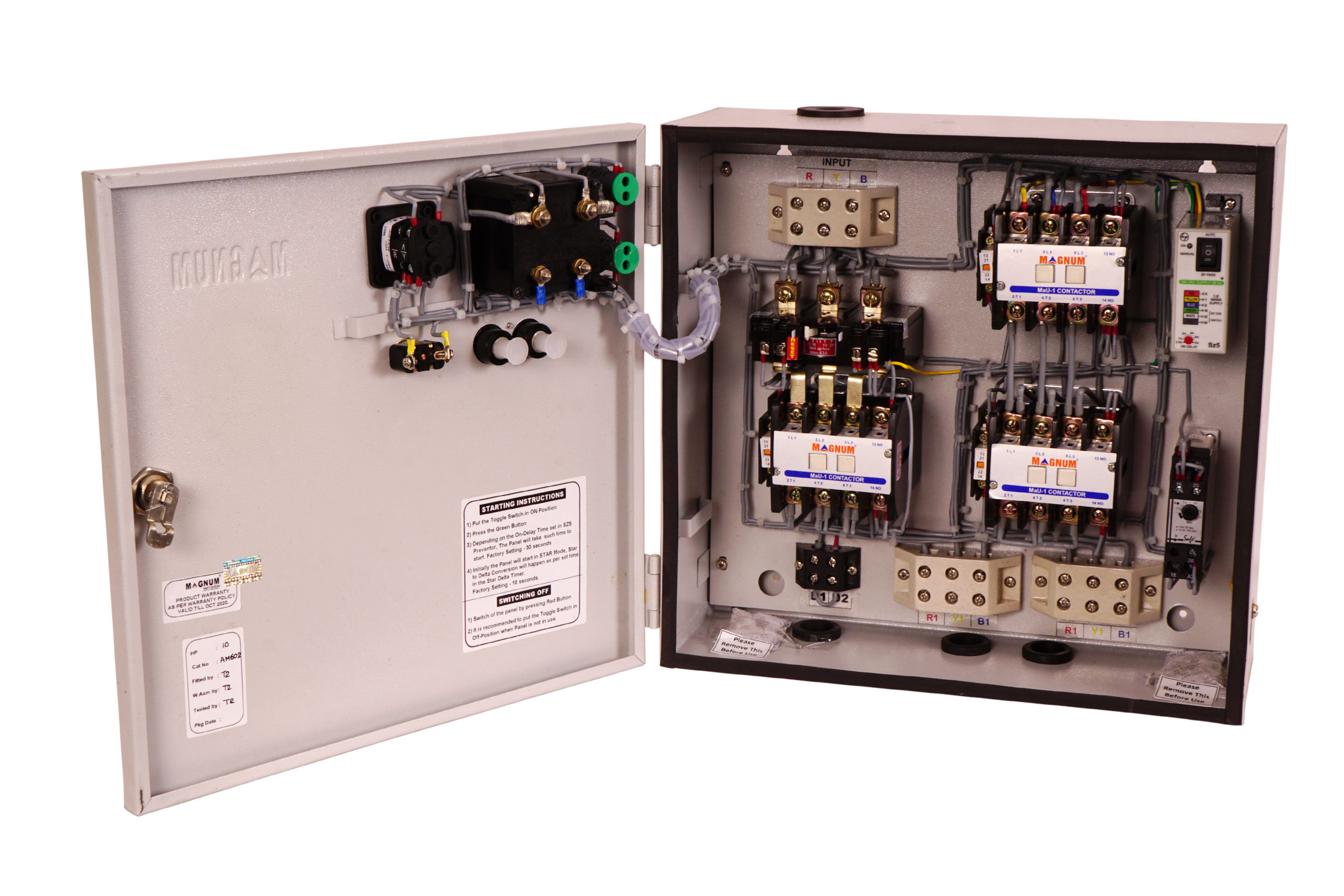

01Powder-coated MS enclosure for enhanced corrosion resistance and sturdiness.
02Rugged MaU contactor with a wide voltage operating band of 250V to 440V.
03MaU type overload relay for reliable overload protection.
04Push-button locking latch to keep the Stop button locked, preventing accidental motor starting.
05Manual reset facility after overload protection is activated.
06
SDz5 type preventor with an inbuilt Star-Delta Timer, providing protection to the motor against:
- Single Phasing
- Phase Reversal
- Voltage Imbalance
07
SDz5 Preventor can be operated in three modes:
- Auto + SPP: Automatically starts the motor after power resumes and provides Single Phasing Prevention.
- SPP: Provides Single Phasing Prevention only.
- Bypass: Disables Single Phasing Protection and the Auto feature. (Not recommended)
08Adjustable ON Time Delay Start: Provision to set a start delay from 30 seconds to 5 minutes before the motor starts.
09Adjustable Star-Delta Conversion Delay: Provision to set a time delay from 6 to 30 seconds during Star-Delta conversion.
10Crimping lugs: All electrical connections are terminated using appropriate crimping lugs for secure and reliable connections.
11Digital meter: Displays Voltage and Current.
12Indication lamps for Power ON and Pump Run status.
13Dry-Run Preventor provision: Terminals D1 & D2 are provided for connecting a Dry-Run Preventor.
14Ergonomic design with aesthetic looks for easy and quick mounting.
15No screw protrusion from the panel, providing additional safety against water, dust, corrosion, and electrical shock.
16Auxiliary contact provision: Suitable for an auxiliary contact block with 1NO + 1NC configuration.
17Gasketed enclosure for enhanced protection against the ingress of dirt and water.

Power rangeUp to 20 HP

Coil Voltage440 V

Operating Voltage70% to 110% of coil voltage

Pick up voltageMinimum 60% of coil voltage

Drop off voltageBelow 50% of coil voltage

Contactor 4PMaU 4P (16A, 25A, 32A)

Relay 4PMaU (4P)

Area(360 × 380 × 143) mm

Net Weight9.9 – 10.0 Kilo grams

Frequency50Hz

Insulation Voltage Ac (Vi)660V

Ambient Temperature-25°C to +55°C

Terminal Capacity1 × 16 [or] 2 × 10 (mm)²

Magnum Vajra MaU Star-Delta Control Panels are powerful switching & controlling devices which are used for agricultural and industrial installations. These are found in applications such as,

Big Electric Motors

Three Phase Submersible Pumps only
