Motor Starters – DOL – Single Phase

Magnum manufactures the very best DOL Motor Starters for Single Phase devices. The DOL starters are precision set, silver tipped and come with trip tested O.L. Relays for guaranteed performance.

Overview

2 Models, One Reliable Range

The Single Phase DOL range spans two product lines — MaK-1 and MaCHK-1 — covering every combination of enclosure, contactor and O.L. relay you need for single phase motors. Every model is fully detailed in the technical comparison table below.

Available Models

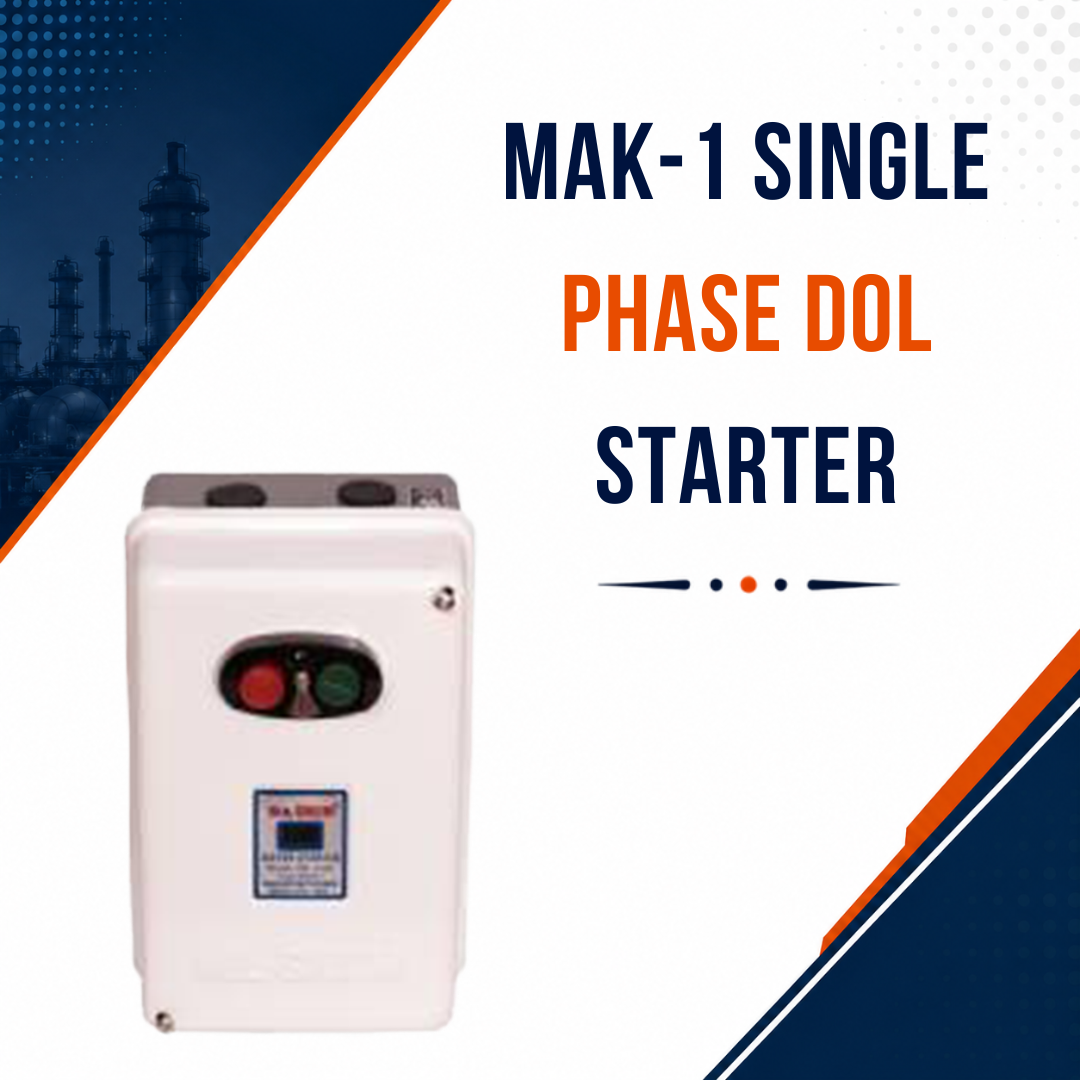

MaK-1 Single Phase DOL Starter
Motor Starters – DOL – Single Phase MaK-1 Single Phase DOL Starter 1 Variant · Standard

Magnum Single Phase Mak-1 Direct On-line Motor Starter Is A Powerful Controlling Device For Your Motor/pump Made With Heavy Duty Components, Which Switches And Protects Your Device From

View Details →

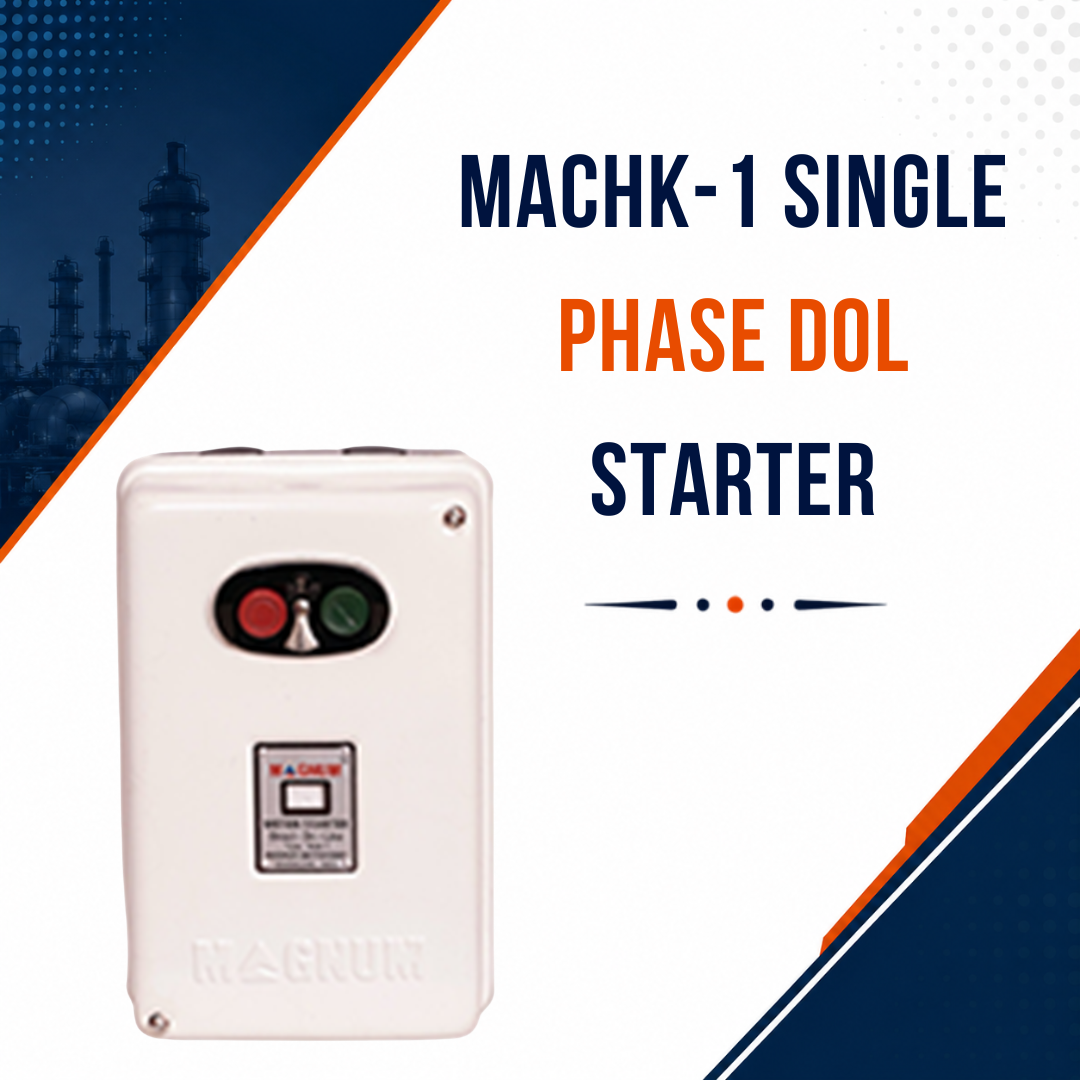

MaCHK-1 Single Phase DOL Starter
Motor Starters – DOL – Single Phase MaCHK-1 Single Phase DOL Starter 1 Variant · Standard

Magnum Single Phase Mak-1 Direct On-line Motor Starter Is A Powerful Controlling Device For Your Motor/pump Made With Heavy Duty Components, Which Switches And Protects Your Device From

View Details →
Technical Comparison

Compare Both Models

Full specification matrix across Enclosure, Contactor, OL Relay Model and General Ratings.

↔ Scroll horizontally to compare all models
SpecificationMaK-1MaCHK-1
SSKSSCK
Enclosure
MaterialMild SteelMild Steel
Dimensions (L × B × H) in mm225*145*125235*155*130
FinishPowder CoatedPowder Coated
ColourDual ColourDual Colour
Cable Entries2 Top + 2 Bottom2 Top + 2 Bottom
Enclosure CoverDetachableDetachable
MountingWall MountWall Mount
Indication - On/OffWindow on EnclosureWindow on Enclosure
Contactor
ModelMaK-1, 4 PoleMaCH, 2 Pole
Contactor TipsSilver tipped rivetsSilver tipped rivets
Contactor Tip Dia/rating7mm (up to 2 H.P), 8mm (3 H.P)10a, 16a ,25a
Contactor ExecutionOpenClose
Coil Voltage220 V AC220 V AC
Operating Voltage150-240V150-240V
OL Relay Model
ModelMaK-1, 2 PoleMaK-1, 2 Pole
OL Relay Range6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21 & 32A
O.L. ProtectionYes, Manual ResetYes, Manual Reset
Power Range0.5, 1, 1.5, 2 & 3H.P0.5, 1, 1.5, 2 & 3H.P
Rated Current6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21 & 32A
Frequency50 Hz50 Hz
Wiring Termination1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²
Insulation Voltage (Ui)
In&Out WiringDirectDirect
Net Weight in KG1.81.6
IndicationON/OFF WindowNO
SwitchingManual On-OffManual On-Off
Ambient Temperature-25°C to +55°C-25°C to +55°C
