Control Panels for Single Phase Submersible Pumps

Magnum offers you different models of top quality Control Panels suitable for Single Phase Submersible Pumps. Choose a model/range according to the motor and features you need.

Overview

3 Models, Complete Protection

The Single Phase Submersible Pump Panel range spans three models — Compact, Pradhaan and Pradhaan-Pro — from a basic MCB/O.L. protected panel to a fully digital-metered panel with dry-run and off-cycle timer protection. Every model is fully detailed in the technical comparison table below.

Available Models

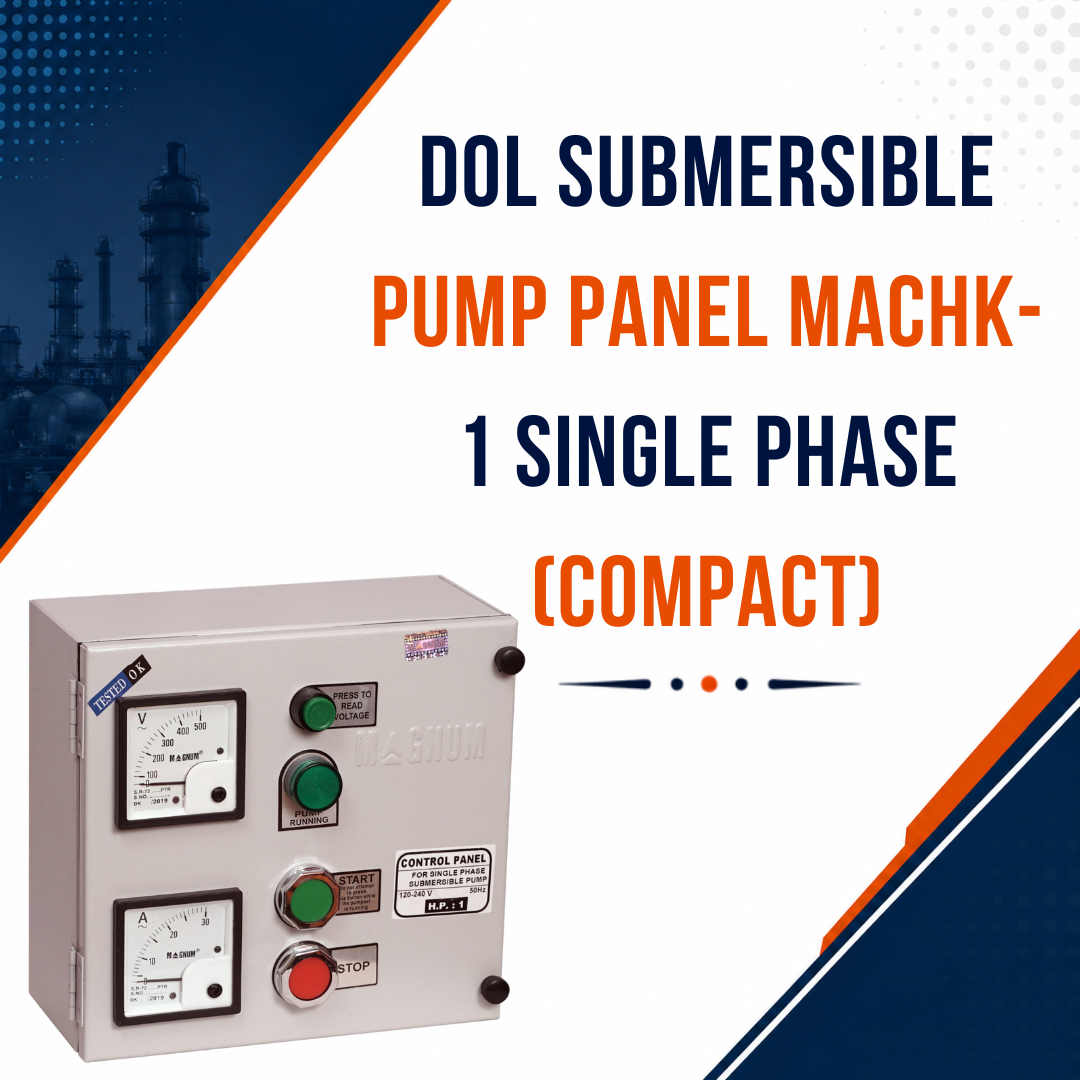

DOL Submersible Pump Panel MaCHK-1 Single Phase (Compact)
Control Panels – Single Phase Submersible Pumps DOL Submersible Pump Panel MaCHK-1 Single Phase (Compact) 1 Variant · Compact

Magnum DOL Single Phase Submersible Pump Panel Compact is a powerful controlling device for your submersible pump made with heavy duty components, which protects the pump from hazards caused

View Details →

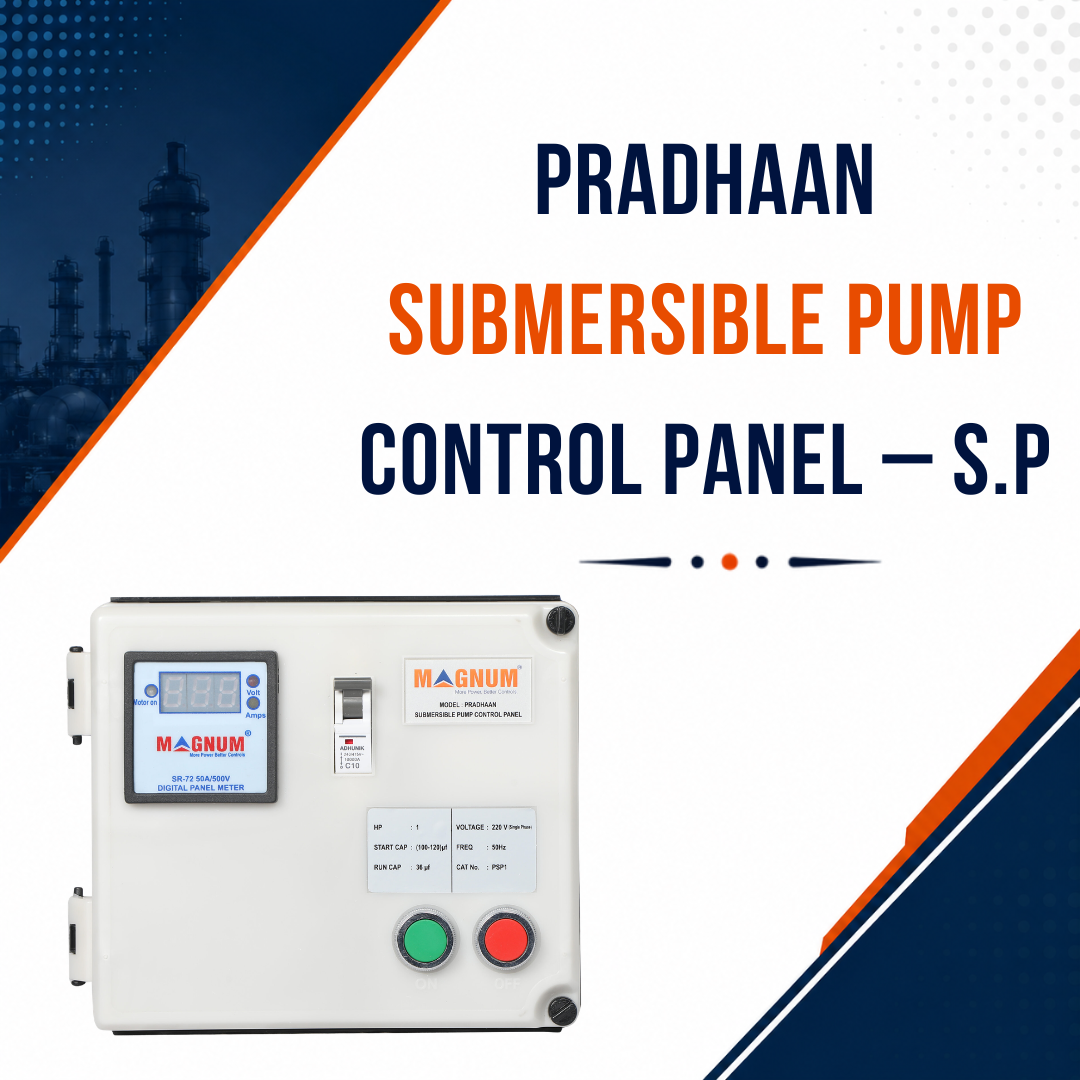

Magnum Pradhaan Submersible Pump Control Panel – S.P
Control Panels – Single Phase Submersible Pumps Magnum Pradhaan Submersible Pump Control Panel – S.P 1 Variant · Pradhaan

Magnum Pradhaan Submersible Pump Control Panel – S.P is a powerful controlling device for your submersible pump made with heavy duty components, which protects the pump from hazards caused

View Details →

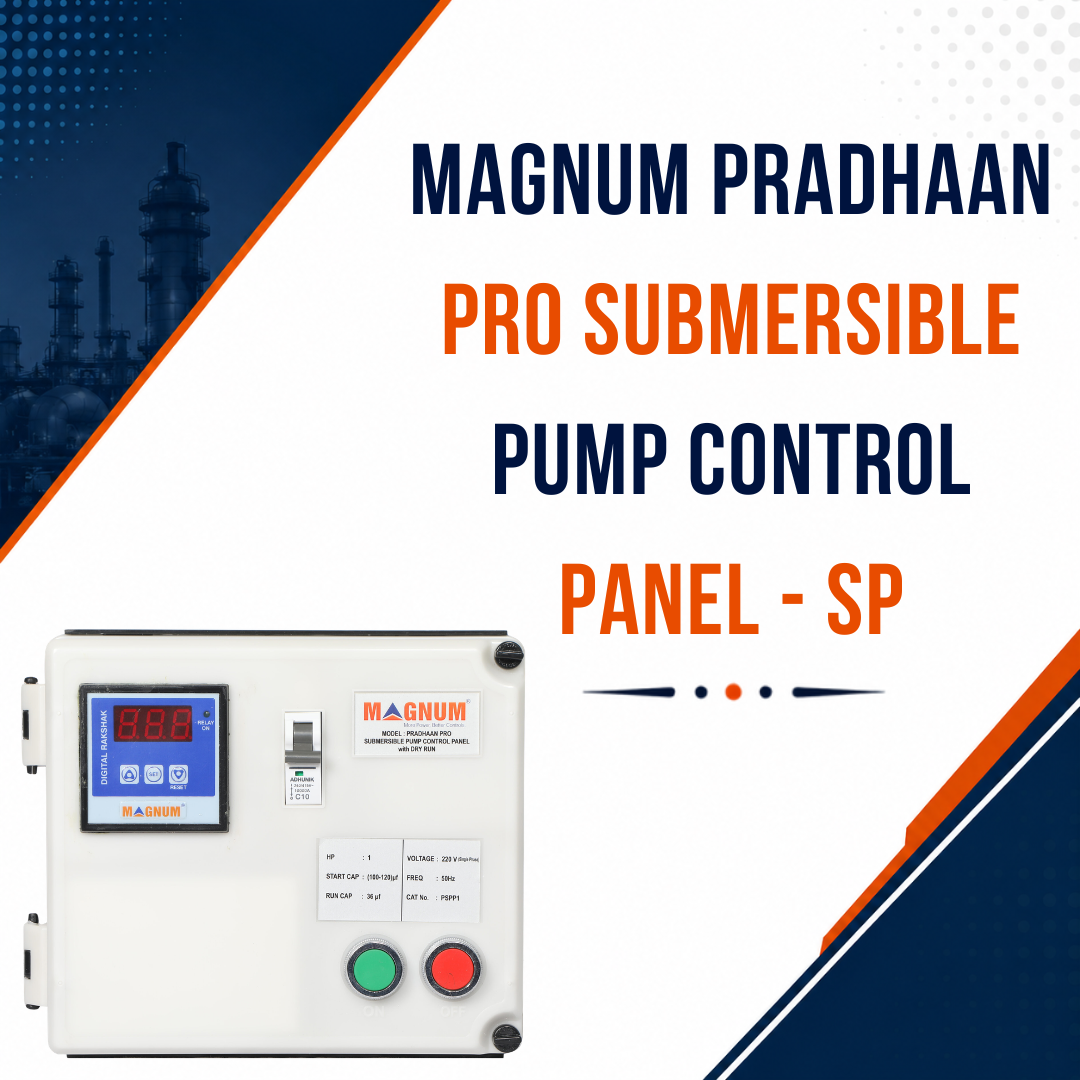

Magnum Pradhaan Pro Submersible Pump Control Panel – S.P
Control Panels – Single Phase Submersible Pumps Magnum Pradhaan Pro Submersible Pump Control Panel – S.P 1 Variant · Pradhaan-Pro

Magnum Pradhaan Pro Submersible Pump Control Panel – S.P (Dry Run Protection) is a smart and powerful controlling device for your submersible pump made with heavy duty components, which

View Details →
Technical Comparison

Compare All Models

Full specification matrix across Enclosure, Contactor Model, OL Relay/MCB, Indications and General Ratings.

↔ Scroll horizontally to compare all models
SpecificationCompactPradhaanPradhaan - Pro
PSCPSPPSPP
Enclosure
MaterialMild SteelPoly CarbonatePoly Carbonate
Dimensions (L × B × H)250*235*135250*215*122250*215*122
FinishPowder CoatedMattMatt
ColourSingleDual ColourDual Colour
Cable Entries2 Bottom1 slot to connector1 slot to connector
Enclosure CoverHingedHingedHinged
MountingWall MountWall MountWall Mount
Heat ResistanceMediumHighHigh
Corrosion and electric resistanceMediumHighestHighest
Contactor Model
ModelMaCH, 2 PoleMaCH, 2 PoleMaCH, 2 Pole
Contactor TipsSilver tipped rivetsSilver tipped rivetsSilver tipped rivets
Contactor ExecutionOpenOpenOpen
Coil Voltage220V220V220V
Operating Voltage150-240V150-240V150-240V
OL Relay/ MCBMaK-1, 2 PoleMCBMCB
OL Relay/MCB Range6.5,10, 14, 18, 21 & 32A6, 10, 16, 20 & 32A6, 10, 16 & 20A
ProtectionOverloadShort-CircuitShort-Circuit
ResetYes, ManualYes, ManualYes, Manual
Indications
Power OnLEDThrough Digital MeterThrough Digital Meter
Pump OnLEDThrough Digital MeterThrough Digital Meter
Fault - O.L, Dry run, High & Low VoltageNANAYes
AmpsAnalogueDigitalDigital
VoltsAnalogueDigitalDigital
Dry Run ProtectionNANAYES
Off-Cycle TimerNANAYes
Capacitors
StartYesYesYes
RunYesYesYes
MeterAnalogueDigitalDigital
Power Range0.5,1,1.5,2 & 3 H.P0.5,1,1.5,2 & 3 H.P0.5,1,1.5 & 2 H.P
Rated Current6.5,10, 14, 18, 21 & 32A6, 10, 16, 20 & 32A6, 10, 16 & 20A
Frequency50 Hz50 Hz50 Hz
Wiring Termination1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²
In&Out Wiring5W Porcelain Connector5W Porcelain Connector5W Porcelain Connector
Insulation Voltage (Ui)660 V AC660 V AC660 V AC
Weight in KG3.6002.1502.160
SwitchingManual On-OffManual On - OffManual On - Off
Ambient Temperature-25°C to +55°C-25°C to +55°C-25°C to +55°C
