Pump/Motor Control Panels – Three Phase

Magnum offers different models of Submersible Pump/Motor Control Panels in Three Phase to match to your specific requirements. Basic functions are similar in all panels, choose a model depending on the prevention and additional features you might need.

Overview

4 Model Lines, Every Preventor Option

The Three Phase Pump Panel range spans four model lines — Executive (MaK-1 & MaU), Gold, Ashva and Veer — each paired with a different Preventor (SZ5, Toroidal or Rakshak) for single-phasing, phase imbalance and wrong-sequence protection. Every model is fully detailed in the technical comparison table below.

Available Models

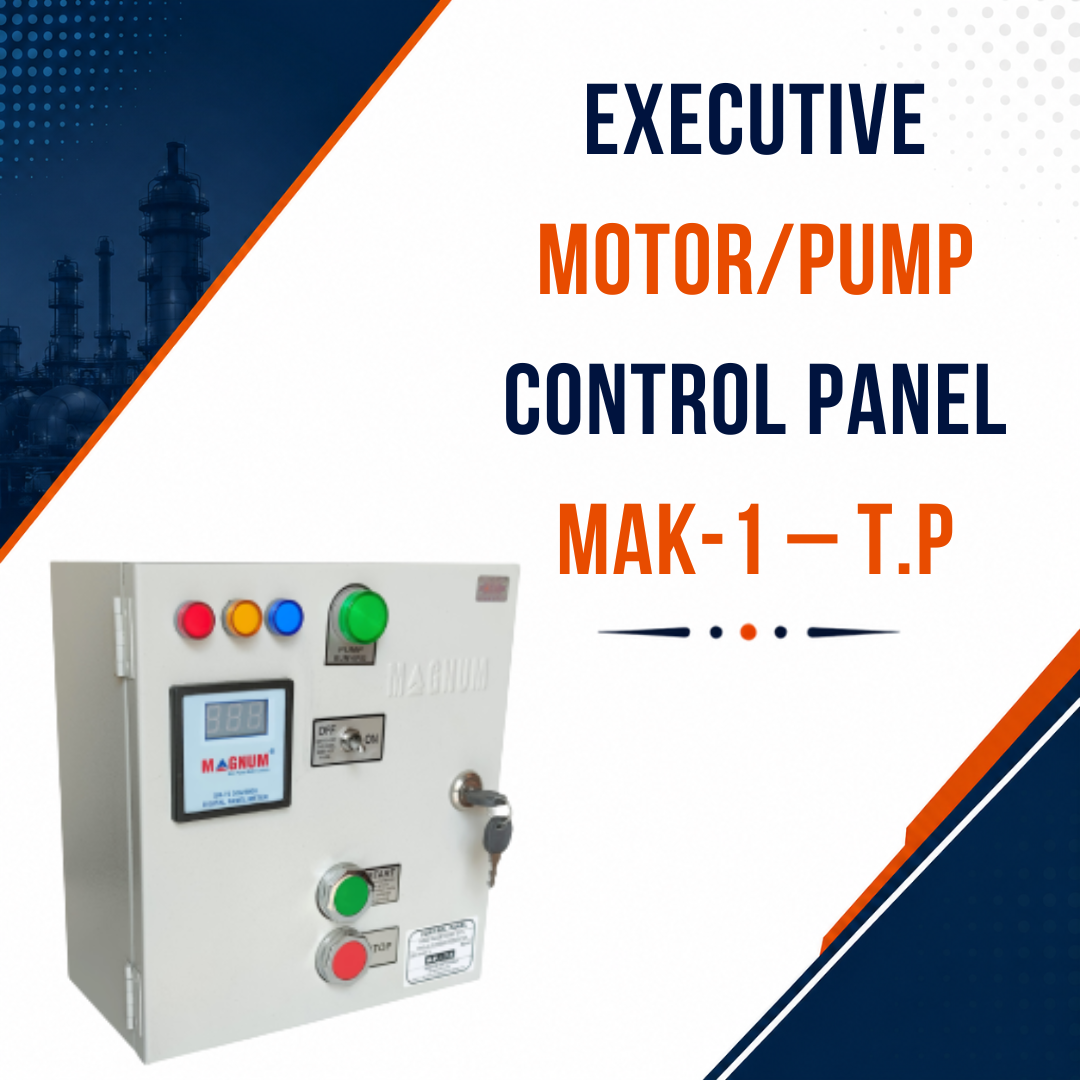

Executive Motor/Pump Control Panel MaK-1 – T.P
Pump/Motor Control Panels – Three Phase Executive Motor/Pump Control Panel MaK-1 – T.P PTEK · Executive (MaK-1)

Magnum Executive Motor/Pump Control Panel MaK-1 – T.P is a powerful controller for your Three Phase Pump/Motor.

View Details →

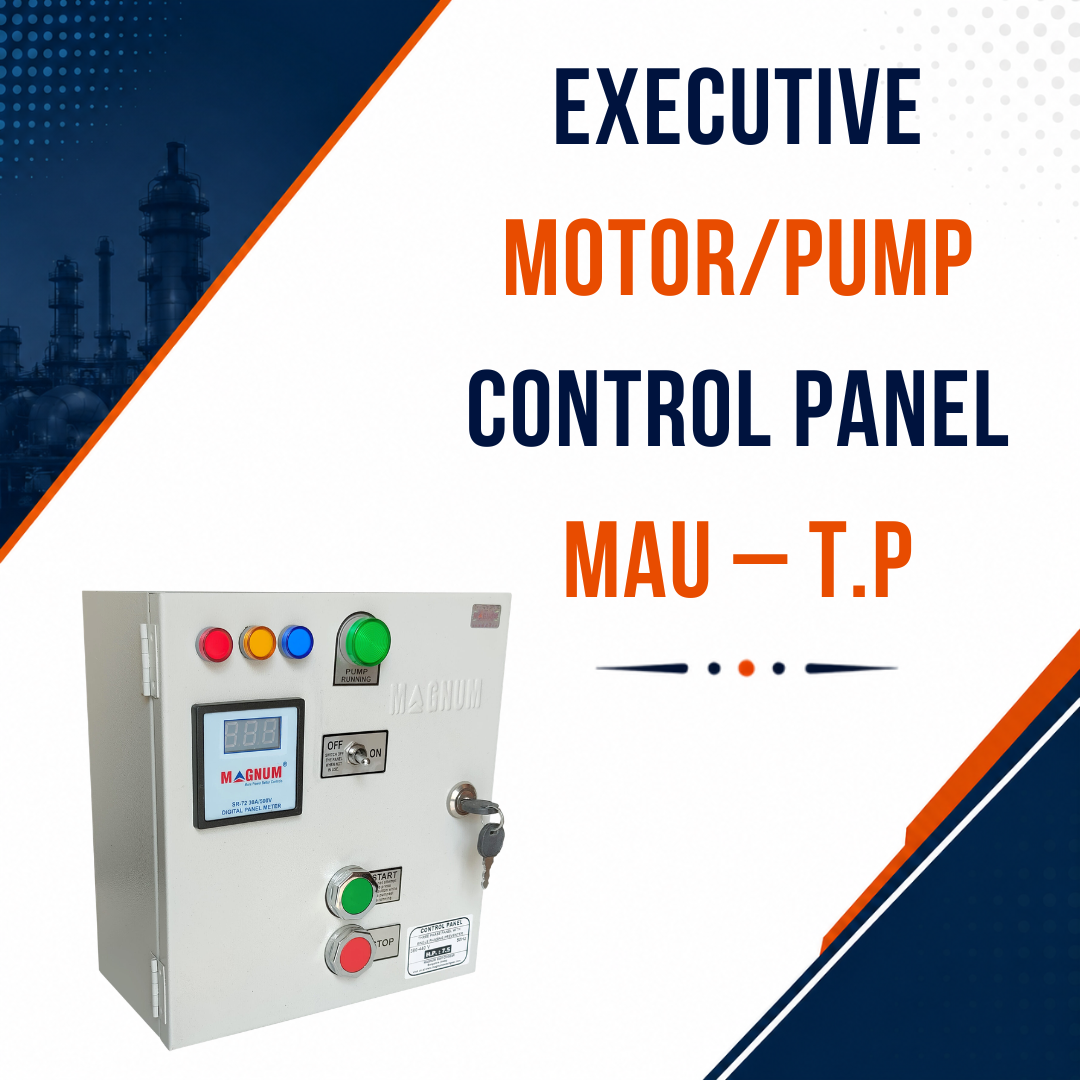

Executive Motor/Pump Control Panel MaU – T.P
Pump/Motor Control Panels – Three Phase Executive Motor/Pump Control Panel MaU – T.P PTEU · Executive (MaU)

Magnum Executive Motor/Pump Control Panel MaU – T.P is a robust and heavy duty performer for controlling your three phase motors/pumps. Digitally Metered and SZ5 Preventor for Prevention and

View Details →

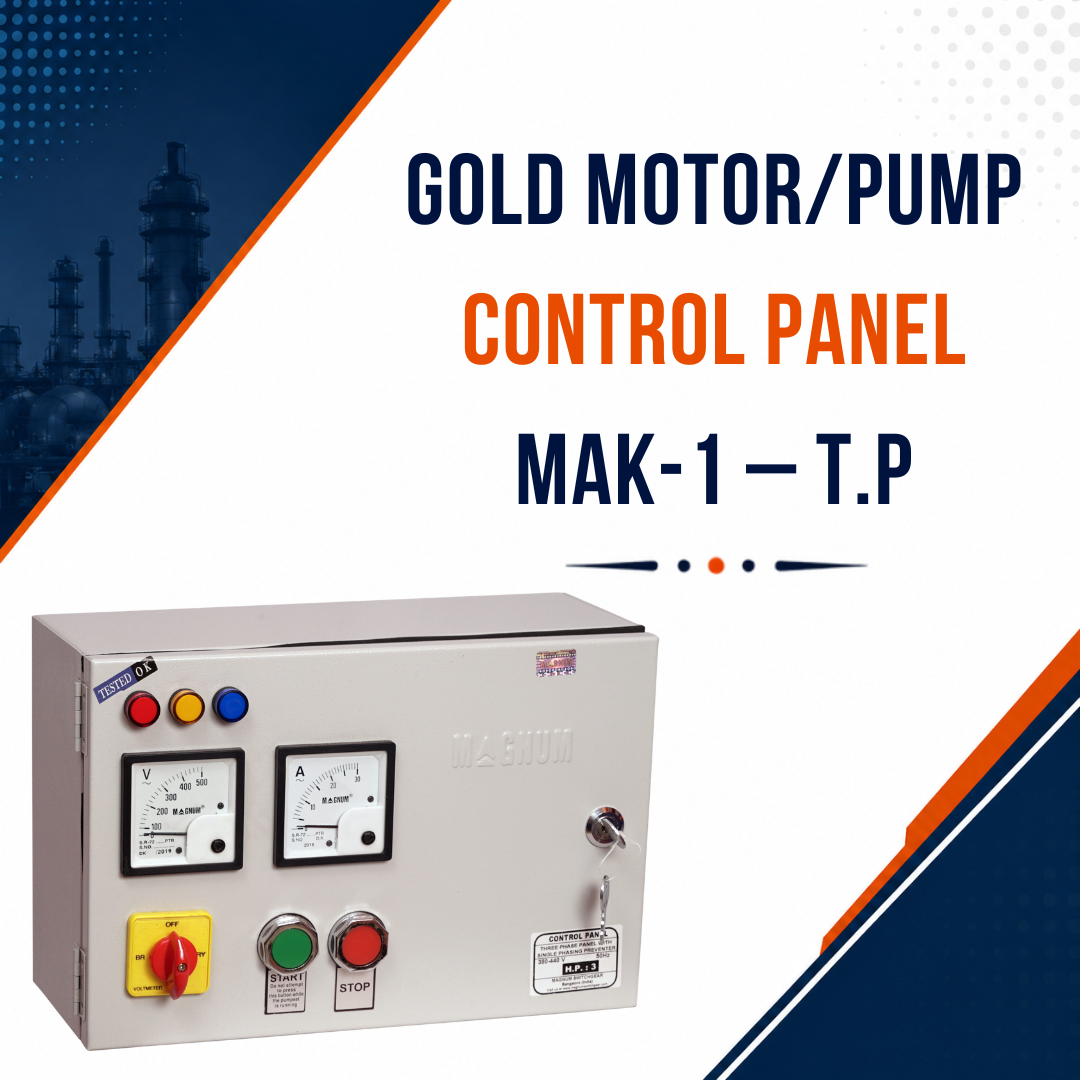

Gold Motor/Pump Control Panel MaK-1 – T.P
Pump/Motor Control Panels – Three Phase Gold Motor/Pump Control Panel MaK-1 – T.P PTGK · Gold

Magnum Gold Motor/Pump Control Panel MaK-1 – T.P is the most simplest and reliable controller for Three Phase Pumps/Motors.

View Details →

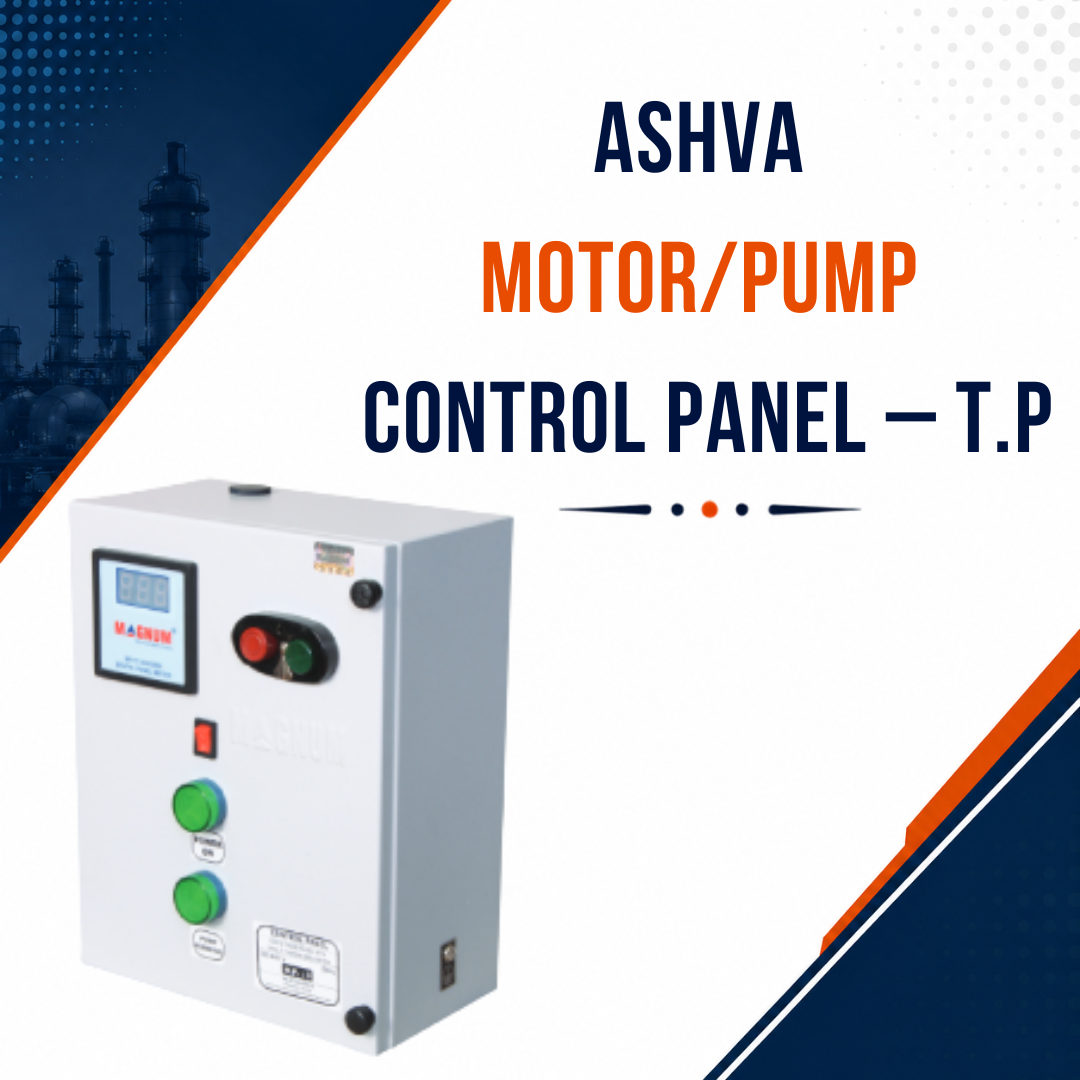

Ashva Motor/Pump Control Panel – T.P
Pump/Motor Control Panels – Three Phase Ashva Motor/Pump Control Panel – T.P PTAK · Ashva

Magnum Ashva Motor/Pump Control Panel – T.P gives a powerful performance packed in a compact enclosure.

View Details →

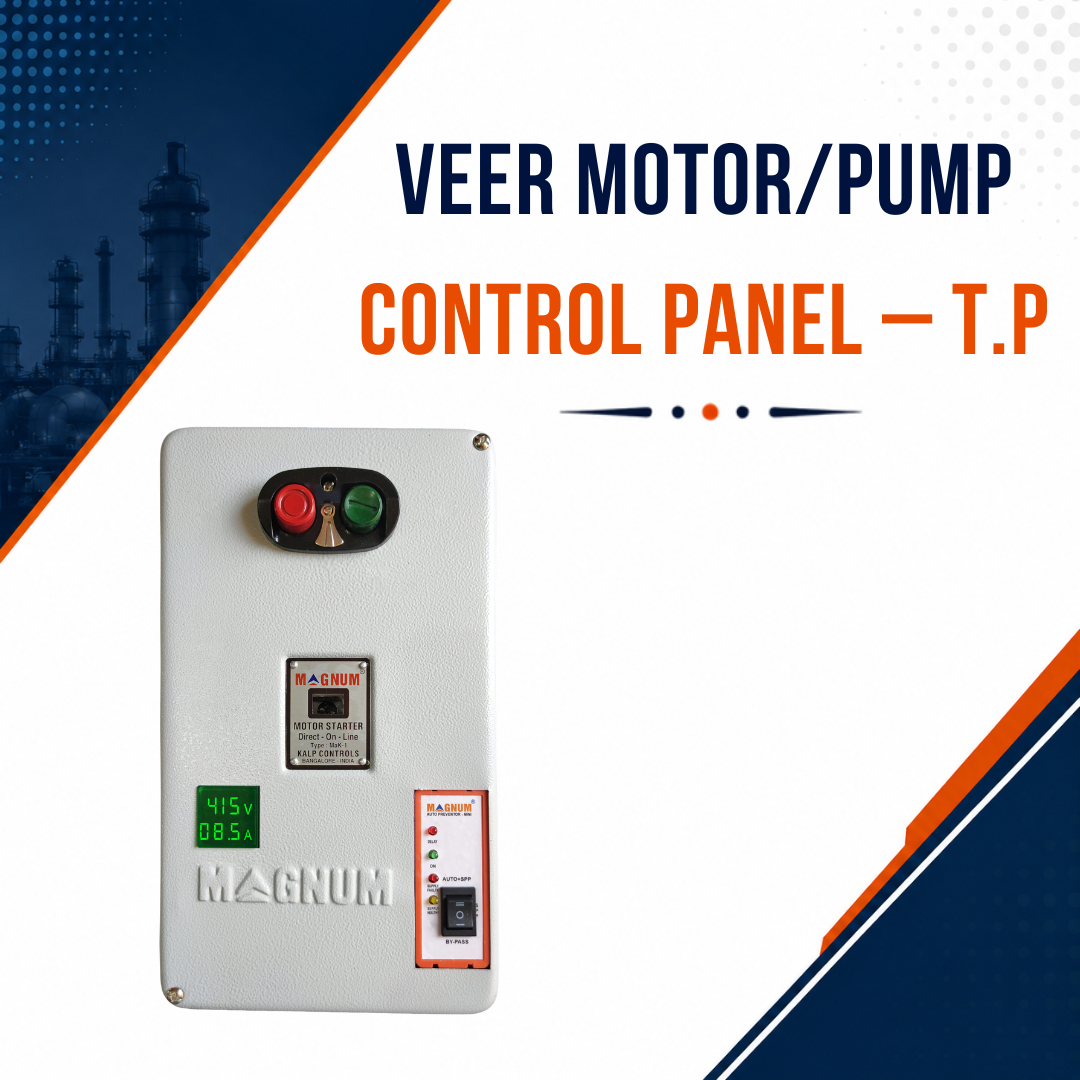

Veer Motor/ Pump Control Panel – T.P
Pump/Motor Control Panels – Three Phase Veer Motor/ Pump Control Panel – T.P PTVK · Veer

Kalp Controls brings you Veer Motor/Pump Control Panel – One of India's finest Starter/Control Panel for T.P Motor/Pumps – now in the most COMPACT enclosure.

View Details →
Technical Comparison

Compare All Models

Full specification matrix across Enclosure, Contactor, OL Relay, Preventor, Indications and General Ratings.

↔ Scroll horizontally to compare all models
Specification Executive Gold Ashva Veer
PTEK PTEU PTGK PTAK PTVK
Enclosure
MaterialMild SteelMild SteelMild SteelMild SteelMild Steel
Dimensions (L × B × H)280*260*165281*260*165358*235*170285*220*145280*170*125
FinishPowder CoatedPowder CoatedPowder CoatedPowder CoatedPowder Coated
ColourSingleSingleSingleSingleDual Colour
Cable Entries2 (Bottom)2 (Bottom)2 (Bottom)1 Top + 1 Bottom2+2 (Top+Bottom)
Enclosure CoverHingedHingedHingedHingedDetachable
MountingWall MountWall MountWall MountWall MountWall Mount
Contactor
ModelMaK-1MaUMaK-1MaK-1MaK-1
Contactor TipsSilver tipped rivetsSilver tipped rivetsSilver tipped rivetsSilver tipped rivetsSilver tipped rivets
Contactor ExecutionOpenCloseOpenOpenOpen
Coil Voltage440V AC440V AC440V AC440V AC440V AC
Operating Voltage270-440V270-440V270-440V270-440V270-440V
OL Relay
ModelMaK-1, 4 PoleMaU, 3 PoleMaK-1, 4 PoleMaK-1, 4 PoleMaK-1, 4 Pole
OL Relay Range6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21, 32 & 42A6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21 & 32A
O.L. ProtectionYes, Manual ResetYes, Manual ResetYes, Manual ResetYes, Manual ResetYes, Manual Reset
Preventor
ModelSZ5SZ5ToroidalRakshakRakshak
Single Phasing, Phase imbalance protectionYes - Voltage sensingYes - Voltage SensingYes - Current SensingYes - Voltage SensingYes - Voltage Sensing
Wrong sequence protectionYesYesNAYesYes
Settable On Delay Timer30 - 300 sec30 - 300 secNA30 - 300 sec30 - 300 sec
Auto/Manual/Bypass- switchingYesYesNAYesYes
Supply fault indicationYesYesNAYesYes
Indications
Power OnIndividual LED - R,Y,BIndividual LED - R,Y,BIndividual LED - R,Y,BLEDThrough Meter
Pump OnLEDLEDThrough MeterLEDThrough Meter
AmpsDigitalDigitalAnalogDigitalDigital
VoltsDigitalDigitalAnalog (Rotary switch)DigitalDigital
Power Range2, 3, 5, 6, 7.5 & 10 HP6, 7.5, 10, 12.5 & 15 H.P2, 3, 5, 7.5 & 10 HP2, 3, 5, 6, 7.5 & 10 HP2, 3, 5, 6, 7.5 & 10 HP
Rated Current6.5, 10, 14, 18, 21 & 32A18, 21, 32 & 42A6.5, 10, 14, 21 & 32A6.5, 10, 14, 18, 21 & 32A6.5, 10, 14, 18, 21 & 32A
Frequency50 Hz50 Hz50 Hz50 Hz50 Hz
Wiring Termination1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²1 × 16 mm² or 2 × 10 mm²
Connection WiringIn + Out Porcelain connectors1+1 Porcelain connectorsIn+Out Bakelite connectorsIn + Out Porcelain connectorsIn + Out Porcelain connectors
Insulation Voltage (Ui)660 V AC660 V AC660 V AC660 V AC660 V AC
Weight in KG4.2004.6005.1003.6002.500
Switching FeatureManual, Electric ButtonManual, Electric ButtonManual, Electric ButtonManual, Electric ButtonManual, Electric Button
Ambient Temperature-25°C to +55°C-25°C to +55°C-25°C to +55°C-25°C to +55°C
