AshvaMotor/Pump Control Panel – T.P

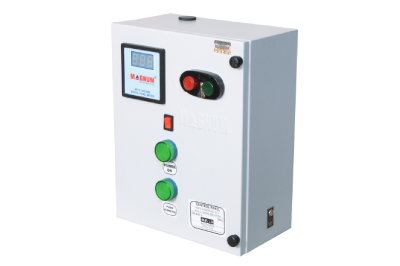

Magnum Ashva Motor/Pump Control Panel – T.P gives a powerful performance packed in a compact enclosure.

Product Video

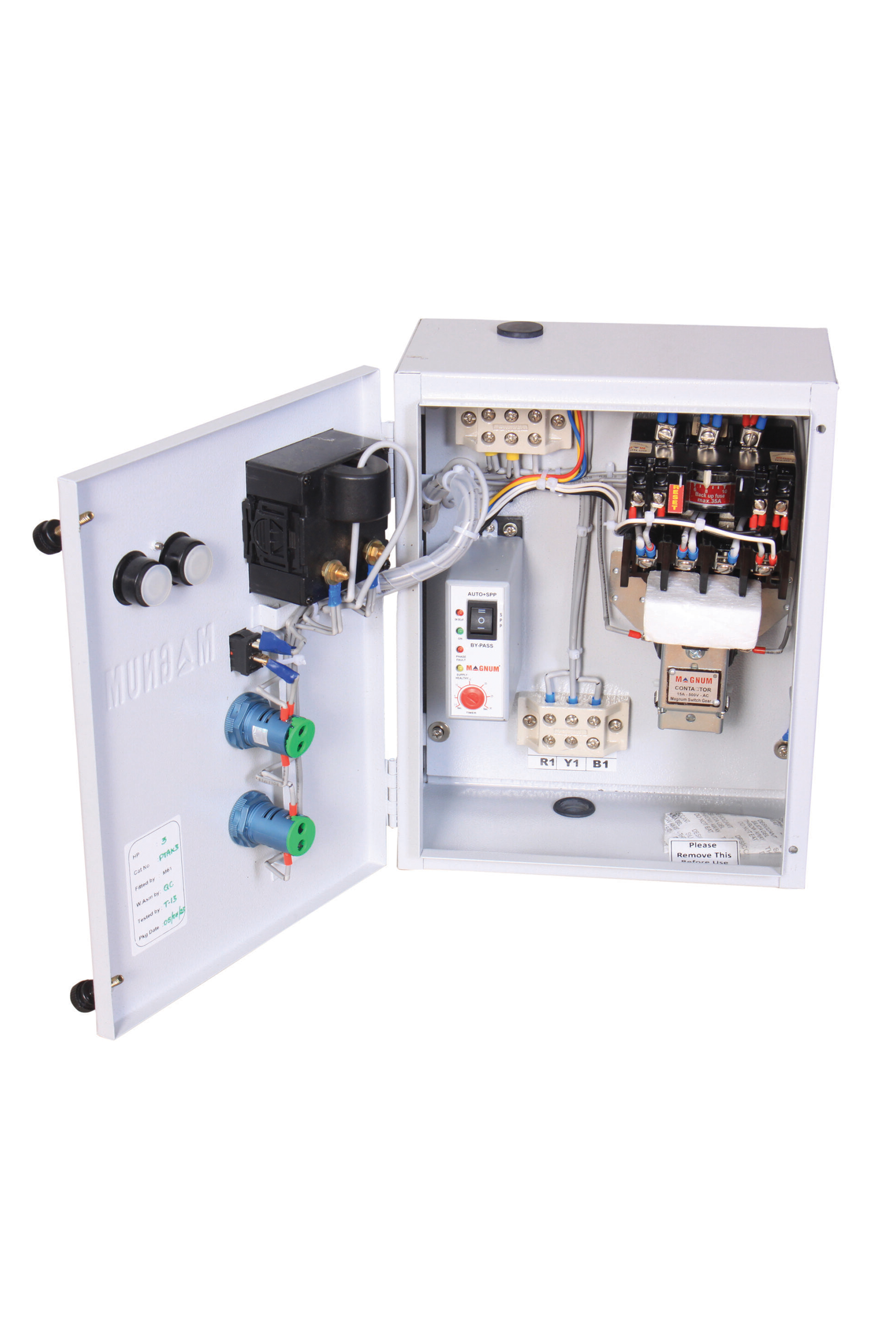

Magnum Ashva Motor/Pump Control Panel – T.P gives a powerful performance packed in a compact enclosure. Powder Coated MS Enclosure, Porcelain Connectors, Digital Metering, Rakshak Preventor and ever reliable combination of MaK-1 Contactors and O.L Relay – make Ashva truly a horse on a long run.

Data Sheet Download

01Powder-coated MS enclosure for enhanced corrosion resistance and sturdiness.
02Rugged MaK-1 Contactor with a wide voltage band of 250V to 440V.
03Fitted with MaK-1 type relay for reliable overload protection.
04Fitted with Magnum Rakshak Single Phasing Preventor and Auto-Start – protects the motor from single-phasing and phase-reversal conditions.
05Ergonomic design with aesthetic looks.
06Fitted with a Digital Meter to monitor motor current and incoming power supply.

Minimum Order Quantity4 Piece

Voltage440V

Current Up to32A

BrandMagnum

MaterialPowder Coated Mild Steel

PhaseThree Phase

RelayMagnum Mak1 O.L.R

Power2,3,5,7.5 & 10 H.P

Magnum 3 Phase Pump Panels are powerful controlling devices for your submersible pumps which are used for domestic & agricultural installations. Magnum Panels are found in many applications such as,

Submersible Pumps

Sewage Pumping

General Industrial Pumping

Slurry Pumping
