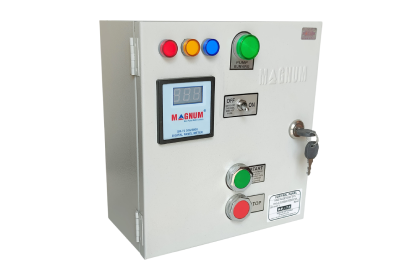

Magnum Executive Motor/Pump Control Panel MaK-1 – T.P is a powerful controller for your Three Phase Pump/Motor. It comes in a powder coated MS Enclosure, has a reliable MaK-1 Contactor and Relay combined with the security of SZ5 Preventor. Digital Metering adds to the convenience.
- 01Powder-coated MS enclosure for enhanced corrosion resistance and sturdiness.
- 02Rugged MaK-1/MaU contactor with a wide voltage band of 250V to 440V.
- 03MaK-1/MaU type overload relay for reliable motor overload protection.
- 04SZ-5 S Single Phasing Preventor with Auto Start to protect the motor from single-phasing and phase-reversal conditions.
- 05Ergonomic design with aesthetic looks for a neat and professional appearance.
- 06Digital meter to monitor motor current and incoming power supply.
- 07Phase indication lamps to indicate voltage availability across all three phases.
- 08Porcelain connectors for safe and easy electrical termination.
- 09Gasketed enclosure for protection against the ingress of dust, dirt, and water.
Voltage440 V
BrandMagnum
MaterialMS
Finish TypePowder coated
PhaseThree Phase
Surface FinishPowder coated
Magnum 3 Phase Pump Panels are powerful controlling devices for your submersible pumps which are used for domestic & agricultural installations. Magnum Panels are found in many applications such as,
Submersible Pumps
Sewage Pumping
General Industrial Pumping
Slurry Pumping
