Magnum MaU DOL Motor Starter are undoubtedly best choice for motors/pumps of higher horse power. Due to their size and load bearing capacity – they work like a breeze controlling your motor/pump.
DOL Motor Starter MaU Series

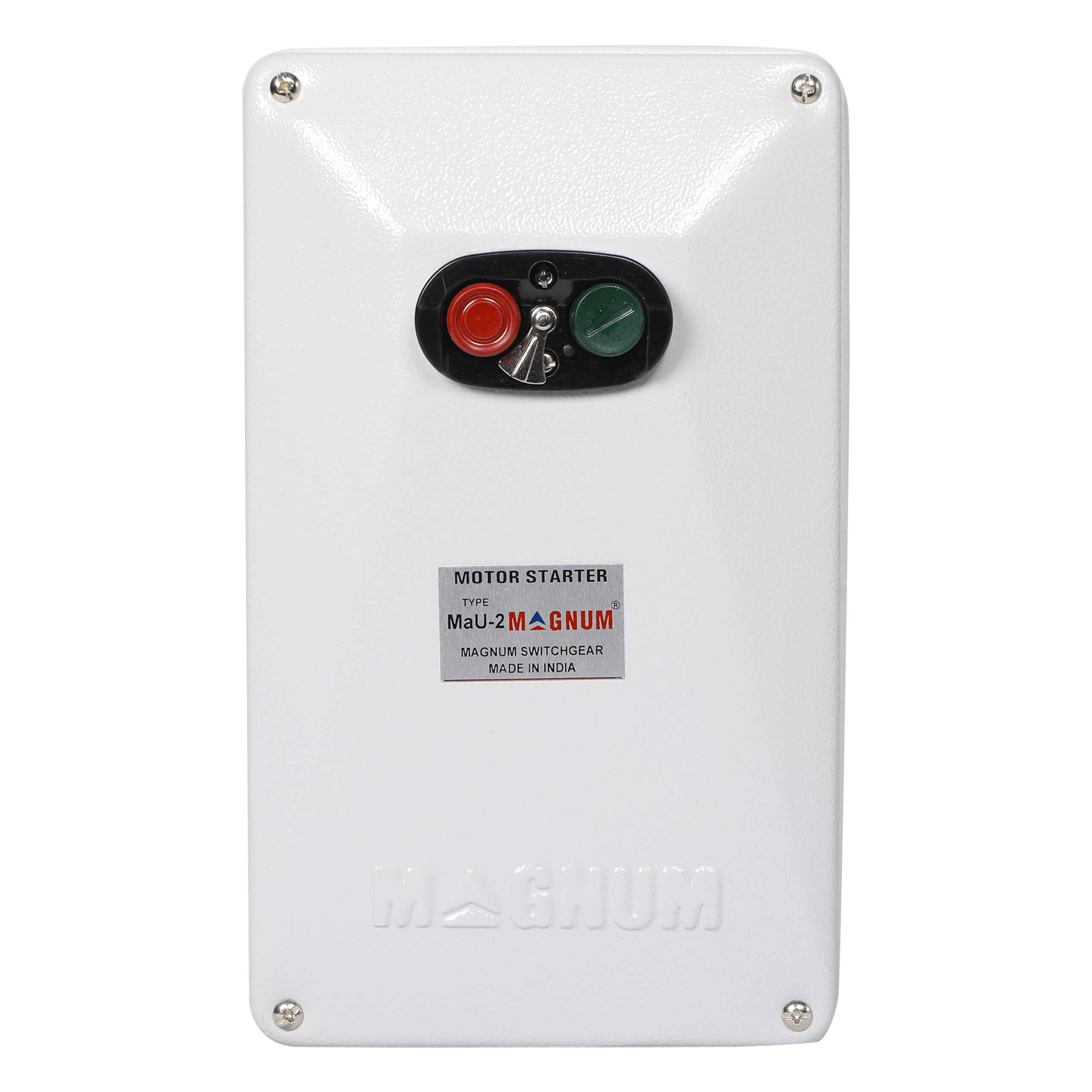

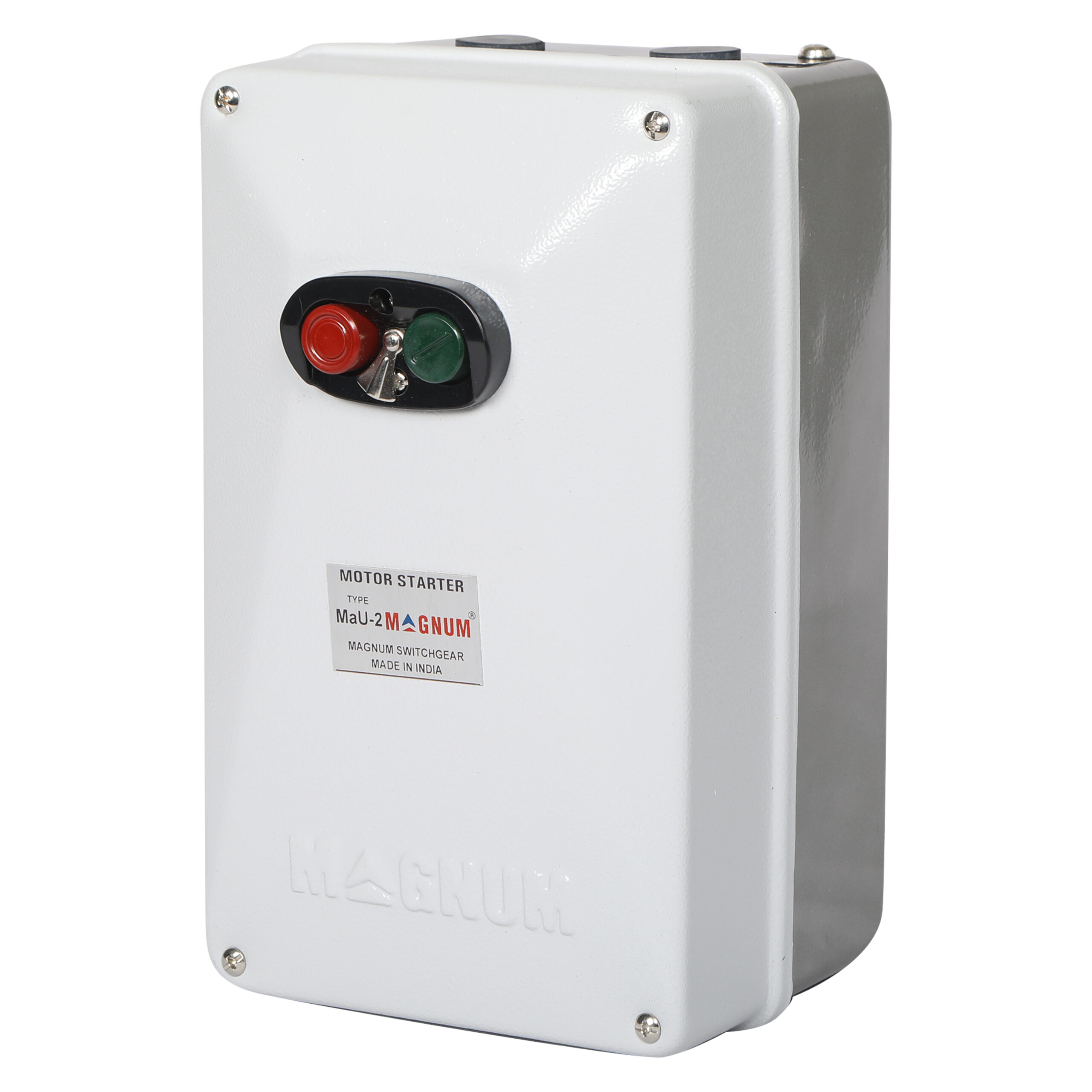

Magnum Three Phase MaU Direct On Line Motor Starter is a powerful controlling device for your motor/submersible pump made with heavy duty components, which protects the pump from hazards caused due to over-current and voltage.
Salient Features
MU DOL Motor Starter Manufacturers
- Rugged MaU Contactor with wide voltage band is designed for exceptional endurance.
- Fitted with MaU type relay for reliable overload protection.
- Ergonomic design with aesthetic looks.
- A latch on the push button can keep the stop button locked, thus preventing accidental starting.
- Hum – Free.
- Easy & quick mounting.
- Encapsulated coil to with-stand wide voltage fluctuations.
- Fitted with earthing screw for a safety measure.
- Manually reset facility after trip.
- On/Off indications can be visible through the given window.
- There is a provision for taking on an auxiliary contact block with configuration 1No 1NC or 2NO 2NC.
Specification
| Starter Type | Direct-On-Line Starter |
| Coil Voltage | 220 V, 440V |
| Voltage | 220 V/440 V |
| Current Rating | 30 A, 20 A, 40 A |
| Weight | Approximate 2.5 kilo grams |
| Phase | Three Phase |
| Power | upto 15 HP |
| Surface Finish | Powder Coated |
| Size | 250mmX150mmX125mm |
| Material | Mild Steel |
| Available Range | Upto 15HP |
| Brand | Magnum |
Applications
Magnum Three Phase Direct On-Line Motor Starters are reliable “Workhorses” for domestic, agricultural and industrial applications. Motor Starters are also found in many applications such as drainage, sewage pumping, general industrial pumping and slurry pumping.
Also used in
• Pumps
• Fans
• Cooling Compressors
• Stirrers and mixers
