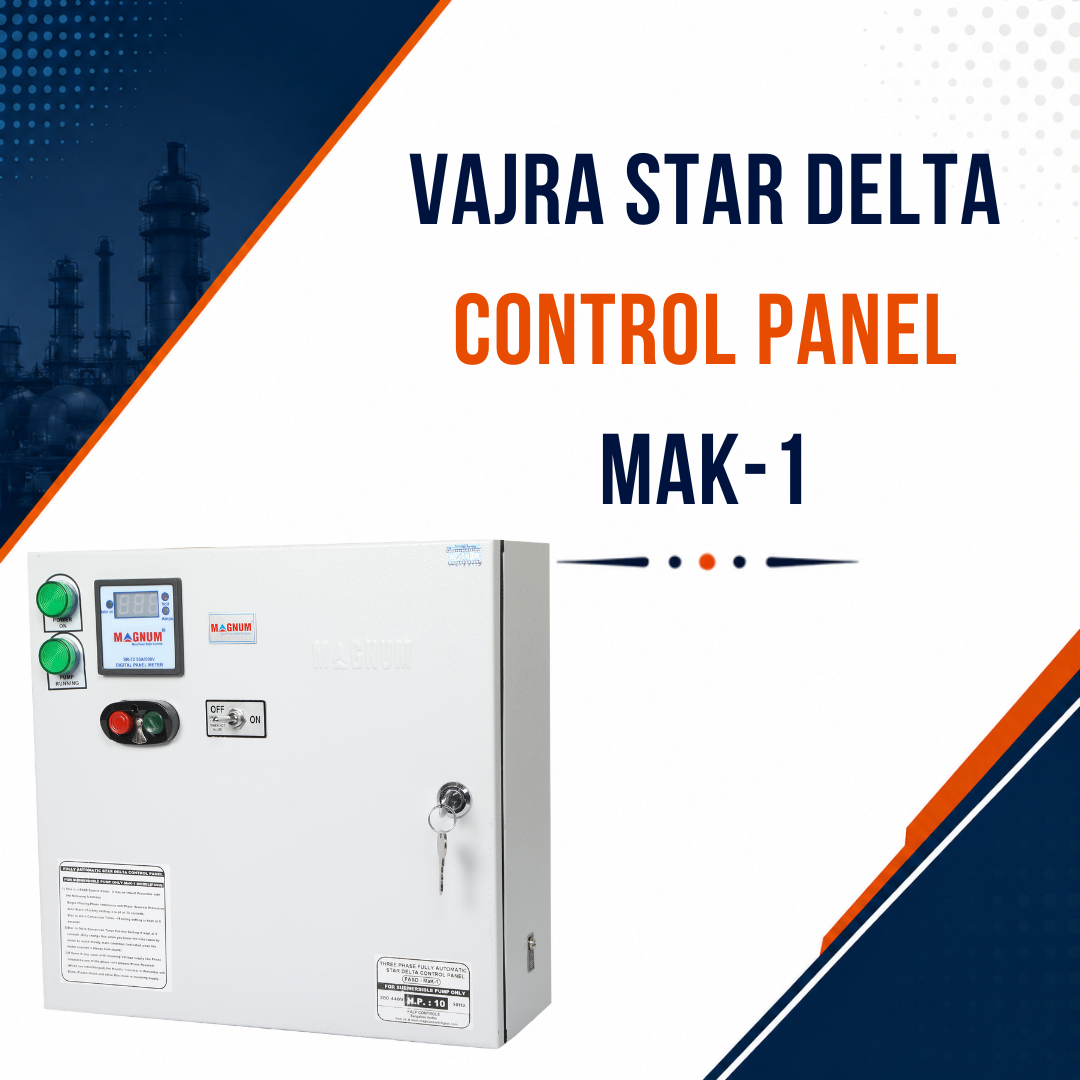

MAGNUM Vajra MaK-1 Star-Delta Control Panel is a powerful switching and controlling device for higher H.P motors. It incorporates protection against single phasing, phase reversal and provides auto-restart
View Details →

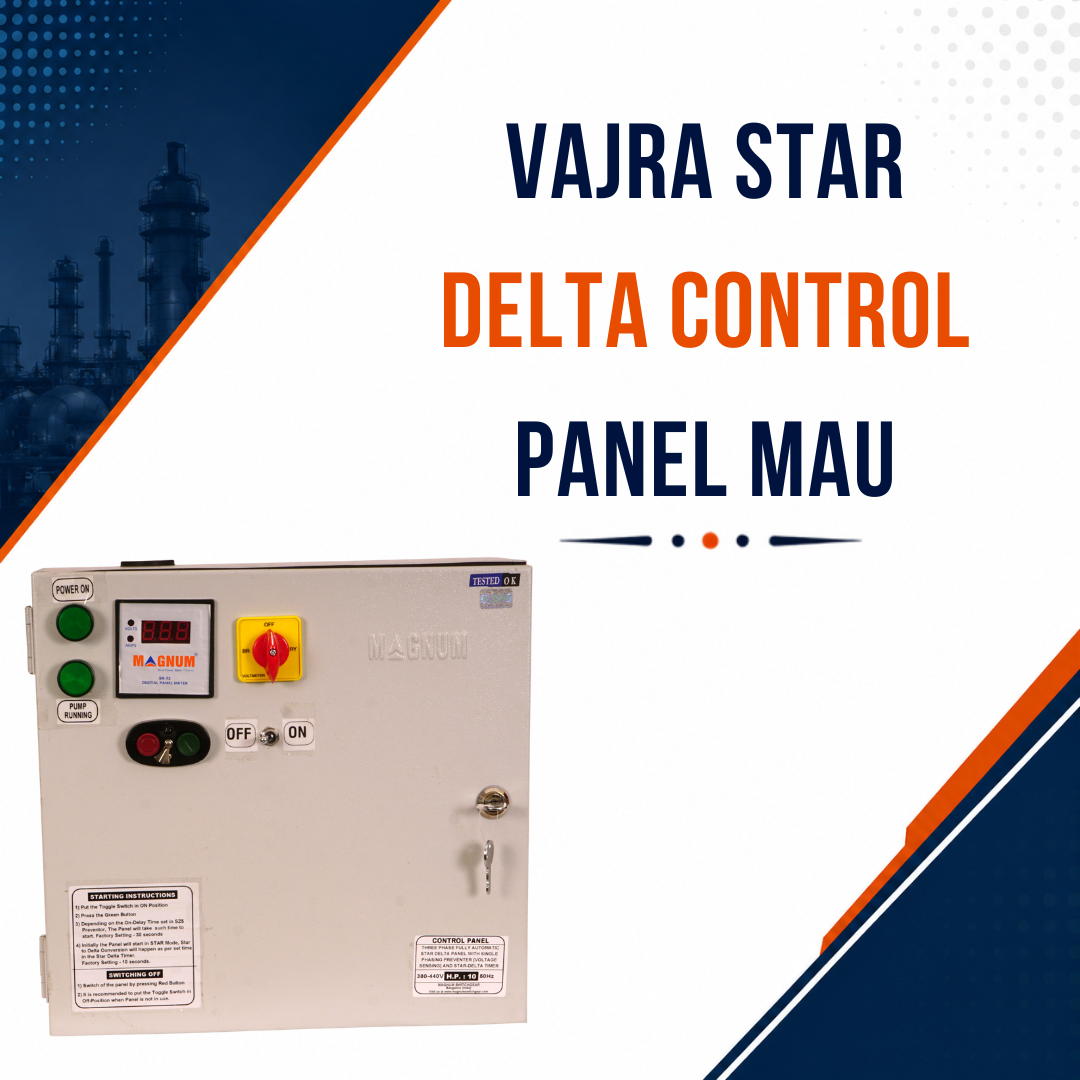

MAGNUM Vajra Star Delta Control Panel MaU is a controlling device for higher H.P of motors. These are made from quality raw materials, enabling it to protect and control your motor consistently.
View Details →Full specification matrix across Enclosure, Contactor Model, OL Relay Model, Preventor, Indications and General Ratings.
↔ Scroll horizontally to compare all models| Specification | Vajra | |
|---|---|---|
| PSDK | PSDU | |
| Enclosure | ||
| Material | Mild Steel | Mild Steel |
| Dimensions (L × B × H) | 395*375*175 | 395*375*175 |
| Finish | Powder Coated | Powder Coated |
| Colour | Single | Single |
| Cable Entries | 1 Top + 1 Bottom | 1 Top + 1 Bottom |
| Enclosure Cover | Hinged | Hinged |
| Mounting | Wall Mount | Wall Mount |
| Contactor Model | ||
| Model | MaK-1 | MaU |
| Contactor Tips | Silver tipped rivets | Silver tipped rivets |
| Contactor Execution | Open | Close |
| Coil Voltage | 440V AC | 440V AC |
| Operating Voltage | 270-440V | 270-440V |
| OL Relay Model | ||
| Model | MaK-1, 4 Pole | MaU, 3 Pole |
| OL Relay Range | 10, 14, 18, 21, 32 & 42A | 18, 21, 32 & 42A |
| O.L. Protection | Yes, Manual Reset | Yes, Manual Reset |
| Preventor | ||
| Model | SDZ5 | SDZ5 |
| Single Phasing, Phase imbalance protection | Yes - Voltage sensing | Yes - Voltage Sensing |
| Wrong sequence protection | Yes | Yes |
| Settable On Delay Timer | 30 - 300 sec | 30 - 300 sec |
| Settable SD transition Timer | Yes | Yes |
| Auto/Manual/Bypass- Options | Yes | Yes |
| Supply fault indication | Yes | Yes |
| Indications | ||
| Power On | LED | LED |
| Pump On | LED | LED |
| Amps | Digital | Digital |
| Volts | Digital | Digital |
| Power Range | 7.5, 10, 12.5, 15, 17.5 & 20 H.P | 12.5, 15, 17.5 & 20 H.P |
| Rated Current | 10, 14, 18, 21, 32 & 42A | 18, 21, 32 & 42A |
| Frequency | 50 Hz | 50 Hz |
| Wiring Termination | ||
| Connection Wiring | In + Out Porcelain connectors | In + Out Porcelain connectors |
| Insulation Voltage (Ui) | ||
| Weight in KG | 8.360 | 9.560 |
| Switching Feature | Manual | Manual |
| Ambient Temperature | -25°C to +55°C | -25°C to +55°C |
| Applications | Submersible Pump Only | Submersible Pump Only |
