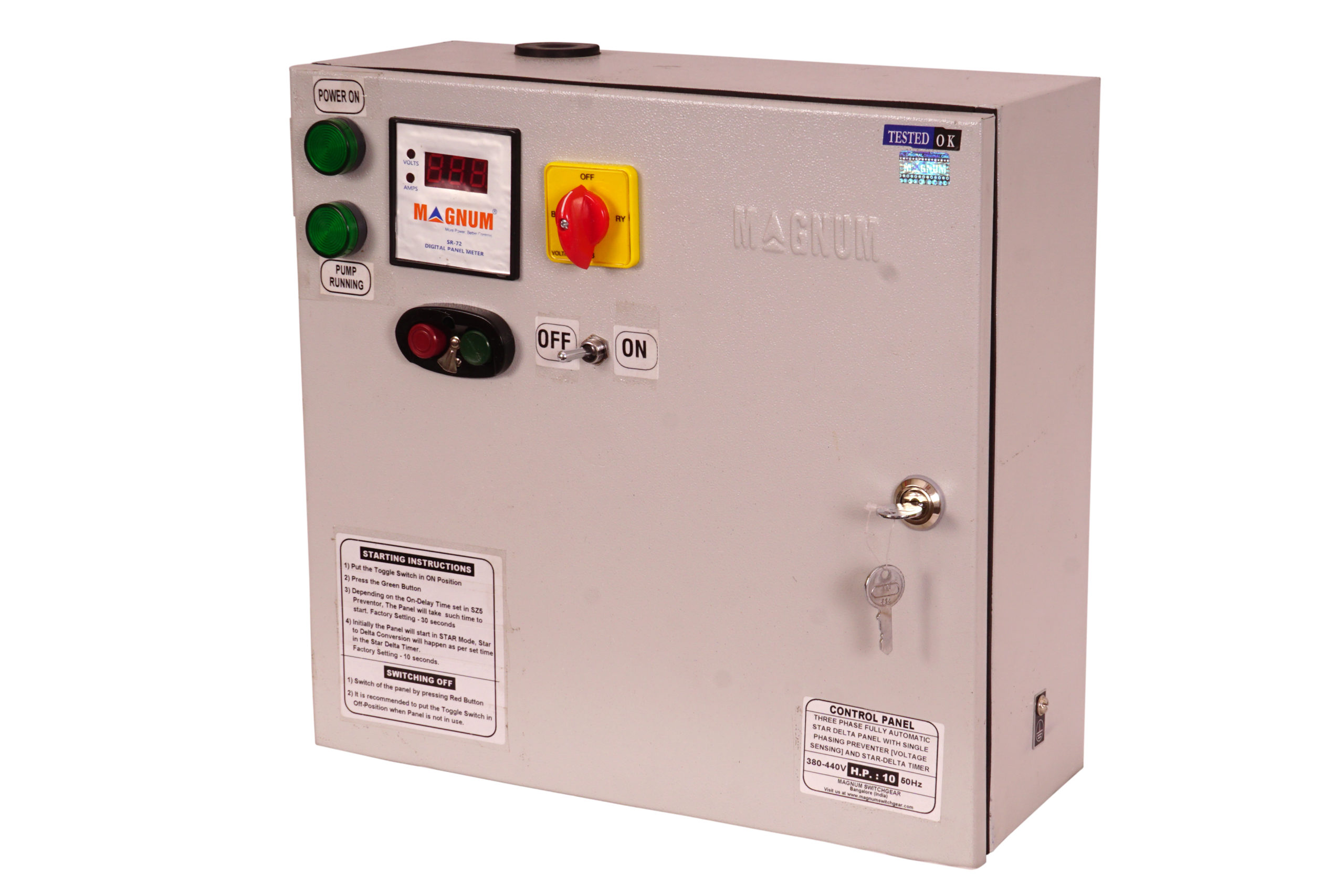

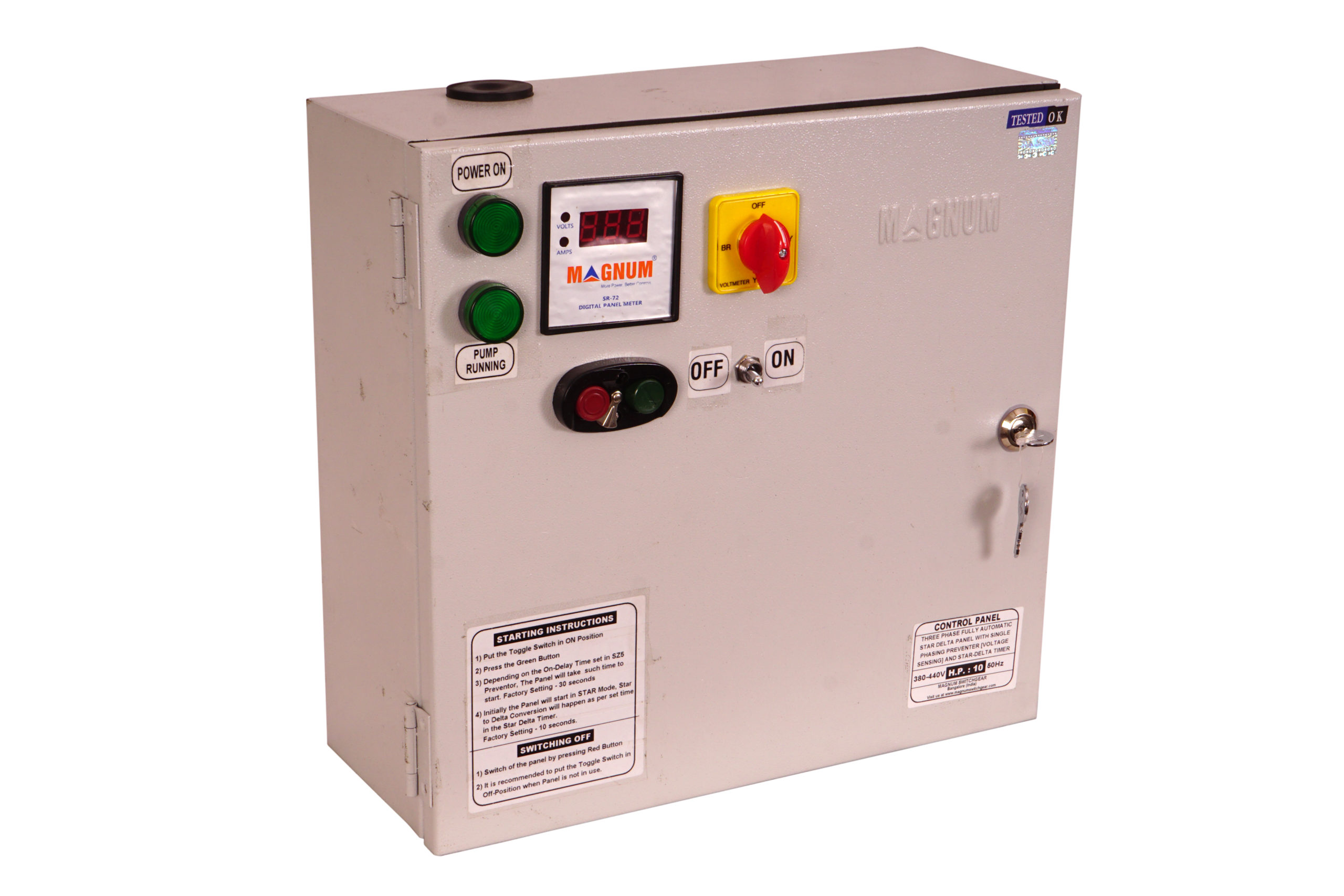

VajraStar Delta Control Panel MaU

MAGNUM Vajra Star Delta Control Panel MaU is a controlling device for higher H.P of motors. These are made from quality raw materials, enabling it to protect and control your motor consistently.

Functions

1. Switches your pump/motor on and off.

2. Being based on Star-Delta mechanism the starting torque & current is considerably reduced on the motor.

3. Protects the pump from: Over-Current, Single phasing condition, Phase Reversal, Phase Unbalanced Condition, Short Circuit.

4. Enables Motor to automatically Switch-On if power resumes when kept in Auto-mode.

5. Indication of power supply to the panel.

6. Indicates current drawn by the motor.

7. Indicates voltage supplied to the panel.

Product Video

Magnum Vajra Star Delta Control Panel MaU offered by Magnum Switchgear is premium and robust in construction and performance. For higher rated motors these panels are best suited.

Data Sheet Download

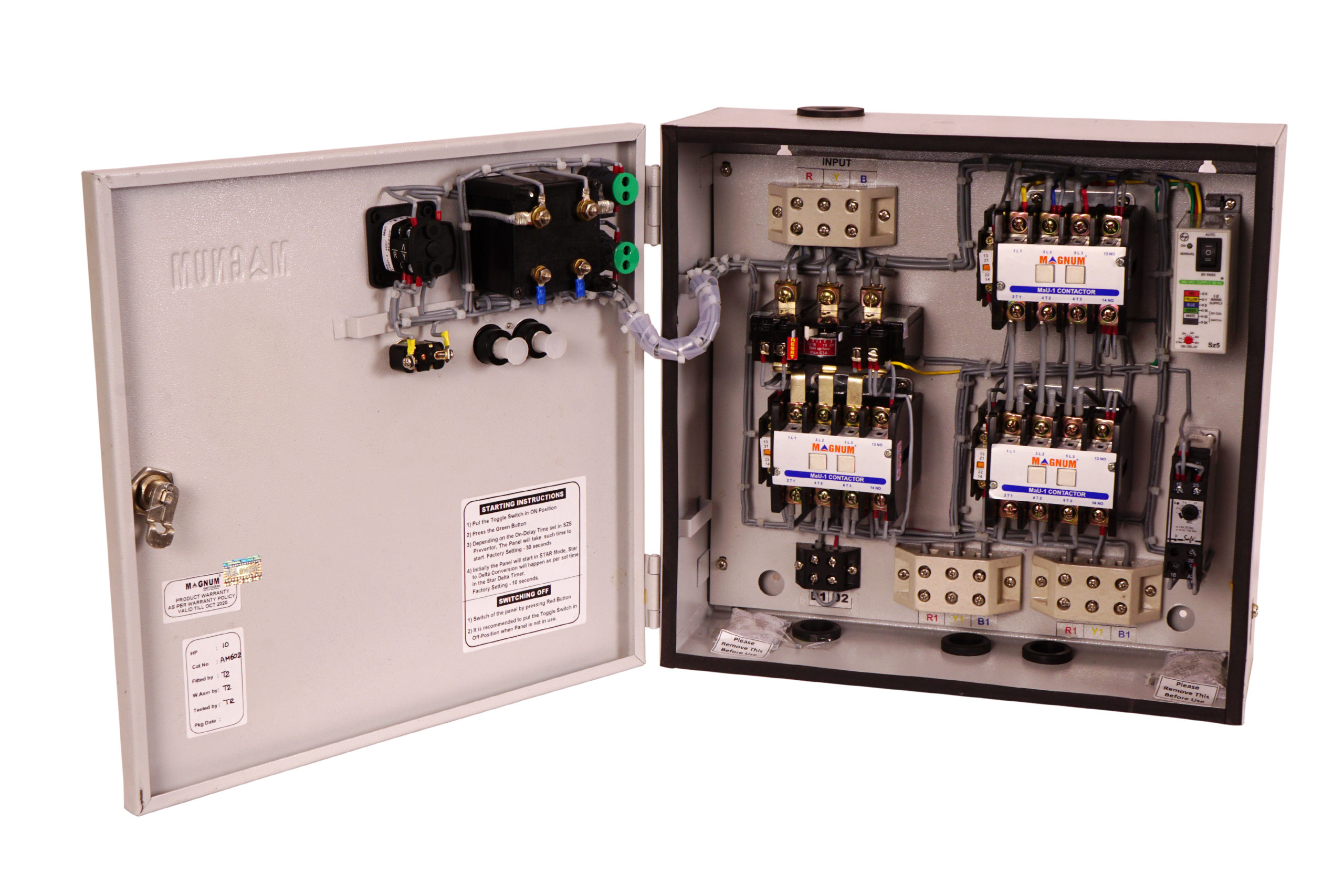

01Power coated MS enclosure for complete corrosion resistance & sturdiness.
02Rugged MaU Contactor with wide voltage band (250V to 440V).
03Fitted with MaU type relay for reliable overload protection.
04Fitted with SDz5 type preventer used for sensing voltage and for protection from Single Phasing, Phase Reversal and Voltage Imbalance Conditions to the motor.
05All connections are terminated through appropriate crimping Luggs.
06Fitted with Digital Meter to show the voltage (Incoming Power Supply) and Current (Motor Current) alternatively.
07Indication lamps for voltage between the phases and Output to Motor.

Power rangeUp to 20 HP

Coil Voltage440 V

Operating Voltage70% to 110% of coil voltage

Pick up voltageMinimum 60% of coil voltage

Drop off voltageBelow 50% of coil voltage

Contactor 4PMaU 4P (16A, 25A, 32A)

Relay 4PMaU (4P)

Area(360 × 380 × 143) mm

Net Weight9.9 – 10.0 Kilo grams

Frequency50Hz

Insulation Voltage Ac (Vi)660V

Ambient Temperature-25°C to +55°C

Terminal Capacity1 × 16 [or] 2 × 10 (mm)²
