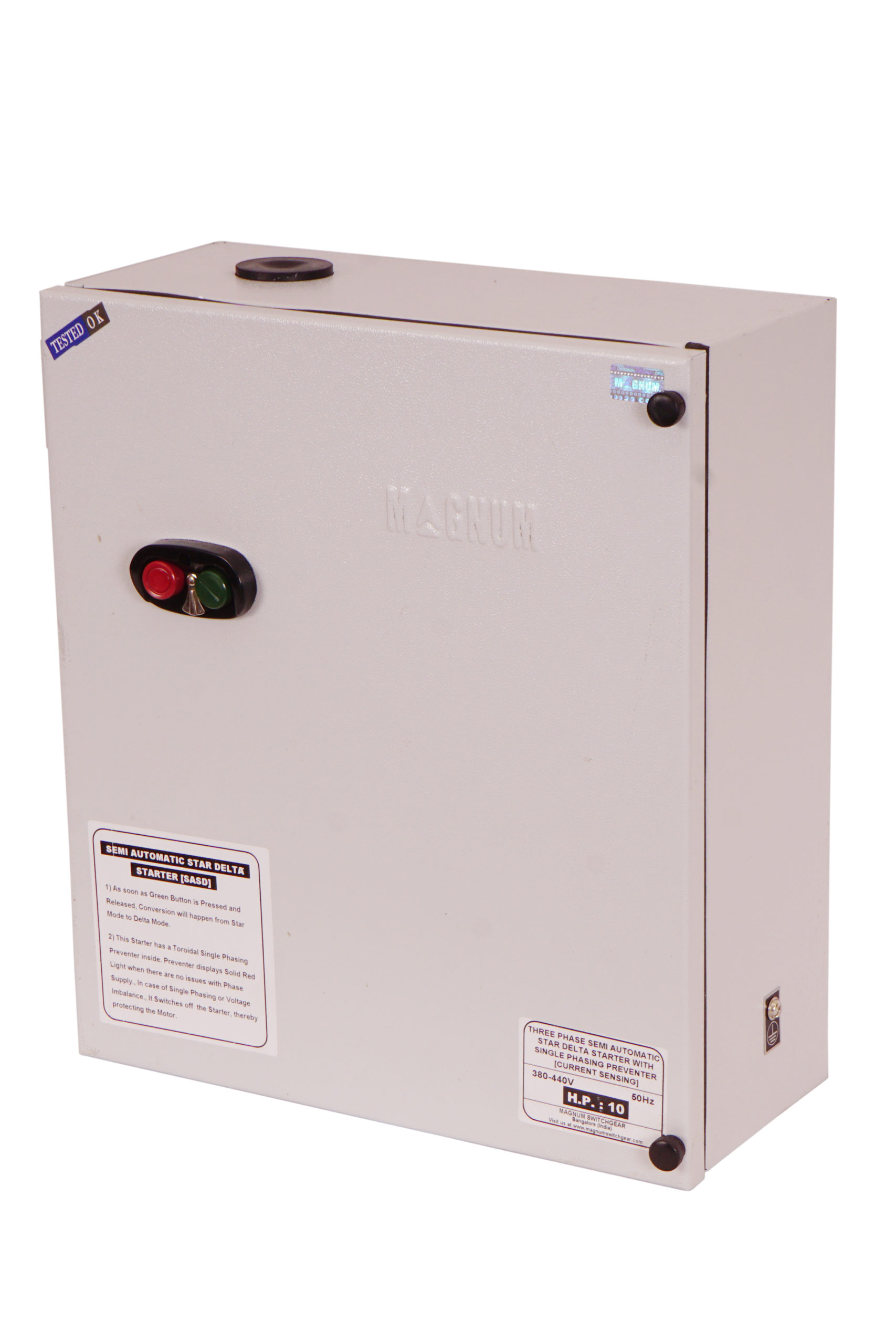

TrishaktiStar Delta Motor Starter MaU

Magnum Trishakti Semi-Automatic Star Delta Starters MaU are powerful controlling devices for your higher H.P Motors. This is made from quality raw materials, enabling it to protect and control your motor consistently.

Product Video

Magnum Trishakti Star Delta Motor Starter MaU series are invariably the most reliable and durable of SD starters.

Data Sheet Download

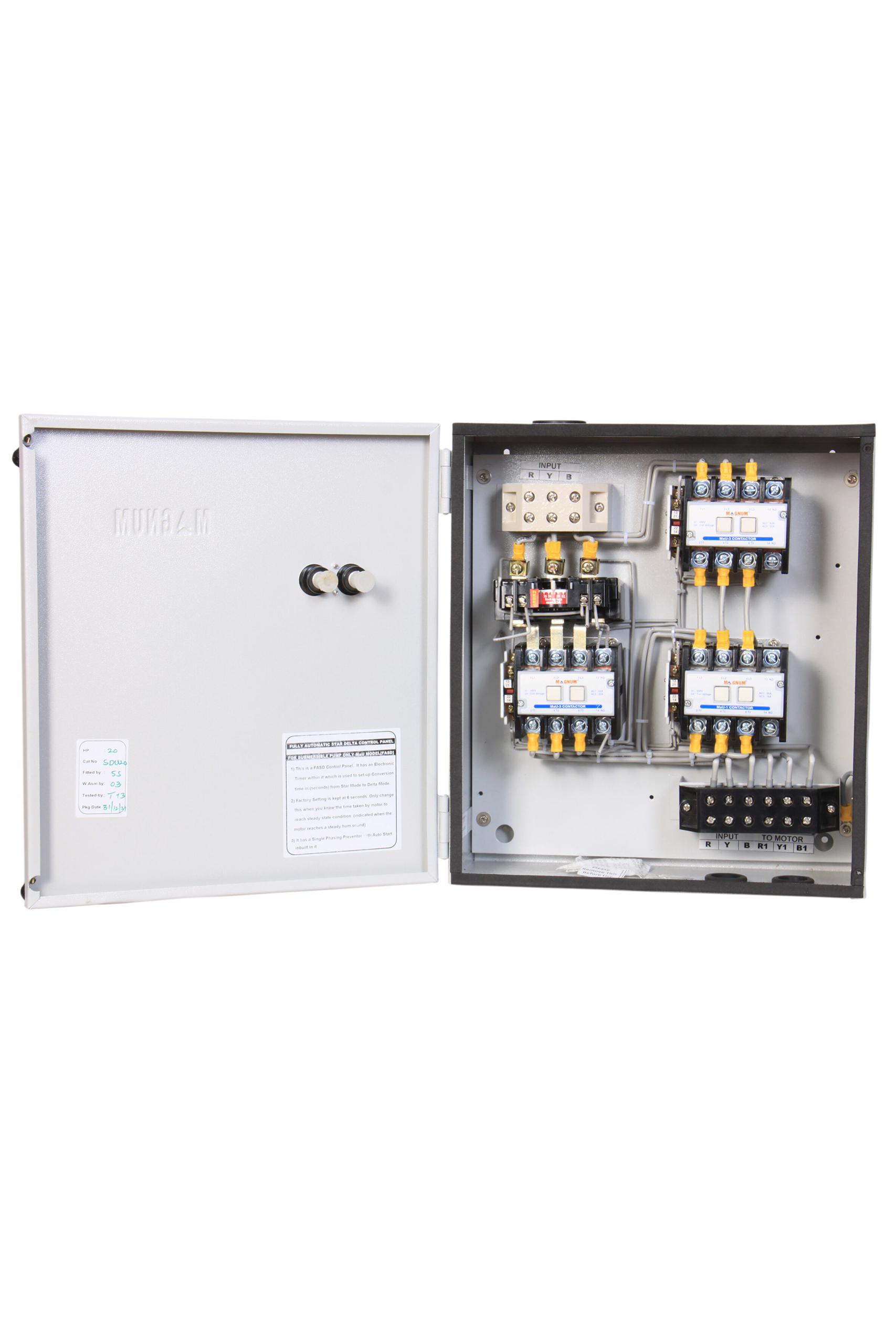

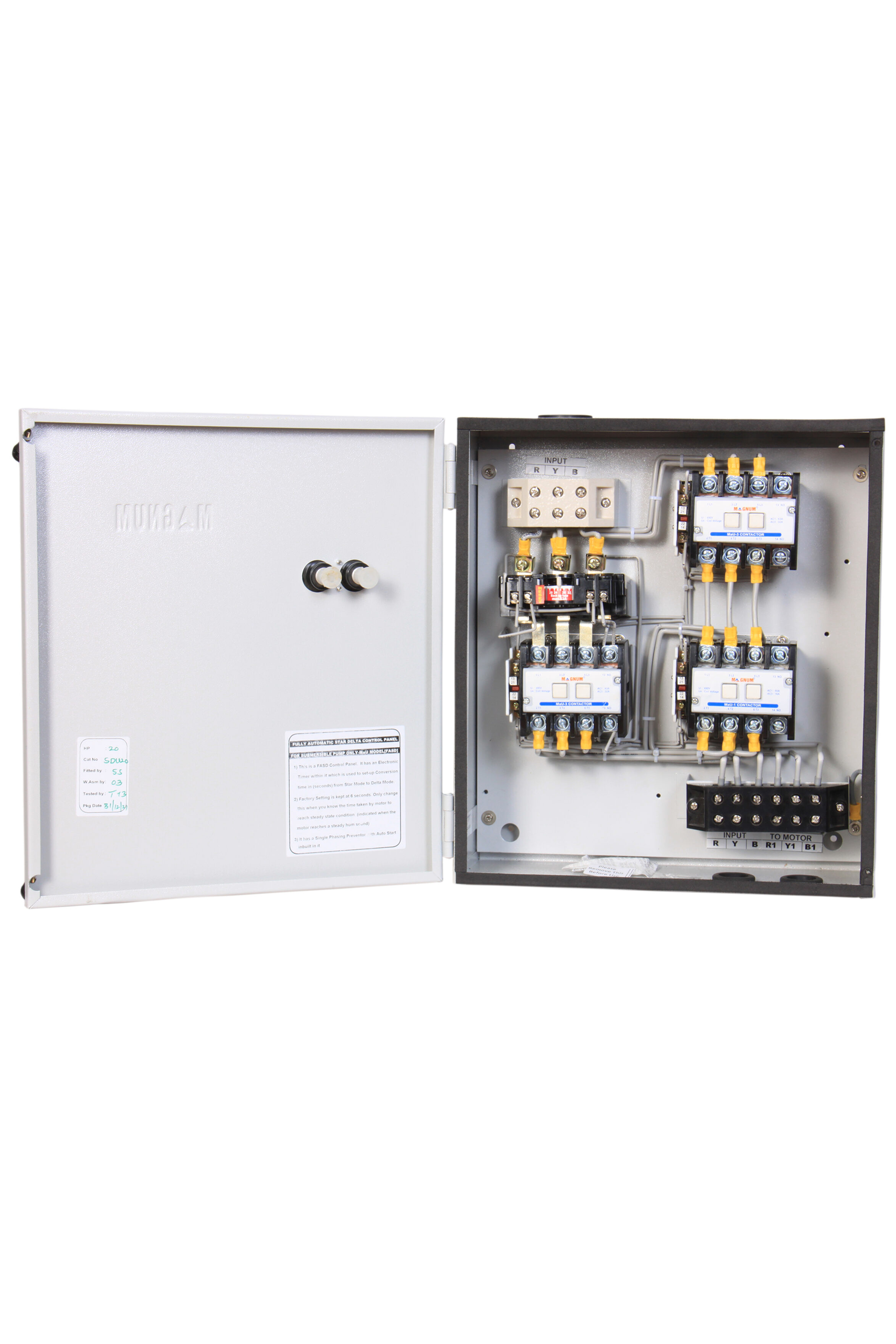

01Powder coated MS enclosure for complete corrosion resistance.
02Rugged MaU contactors with wide voltage band (200-440V).
03Fitted with MaU type relay for reliable overload protection.
04Input & Output connections are terminated through a terminal block [Hence no intervention is required on the circuit]
05All connections are terminated through appropriate crimping Luggs.
06No screw protrusion from the panel, hence additional safety from water, dust, corrosion and electric shock.

Power rangeUp to 20 HP

Coil Voltage440 V

Operating Voltage70% to 110% of coil voltage

Pick up voltageMinimum 60% of coil voltage

Drop off voltageBelow 50% of coil voltage

Contactor 4PMaU [16A / 25A / 32A]

Relay 4PMaU-1 / MaU-2

AreaMaU (370 × 330 × 143) mm

Net Weight8.6 – 8.7 Kilo grams

Frequency50Hz

Insulation Voltage Ac (Vi)660V

Ambient Temperature-25°C to +55°C

Terminal Capacity1 × 16 (mm)² or 2 × 10 (mm)²

Magnum MaU Star Delta Motor Starter is used for higher current carrying motors. Star Delta Starters are used generally for motors above 10 H.P
